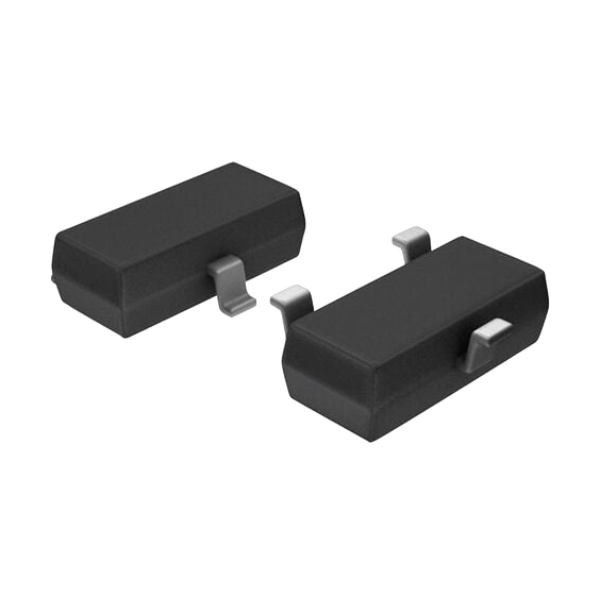

2N7003BK 215 N-Channel, 350mA 60v 3-Pin SOT-23y
SKU: MOS-0091-B09
Sold by Select Automation
Final price R 137.02
R 119.15 excl. VAT
Availability: In Stock (33 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 2N7003BK is a compact, N-channel enhancement-mode MOSFET designed for high-speed switching and low-side load control in surface-mount applications. Built using trench MOSFET technology, it offers fast switching performance, logic-level gate compatibility, and robust ESD protection. It’s ideal for use in relay drivers, line drivers, and general-purpose switching circuits where space and efficiency are critical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: N-channel Trench MOSFET
Package: SOT-23 (TO-236AB)
Drain-Source Voltage: 60V
Gate-Source Voltage: ±20V
Continuous Drain Current:350 mA at 25°C245 mA at 100°C
Peak Drain Current: 1.2A (single pulse)
Drain-Source On Resistance: 1.6 Ω at 10V
Total Power Dissipation:440 mW (FR4 PCB)Up to 1.2W (optimized layout)
Junction Temperature: –55°C to +150°C
ESD Protection: Up to 2kV (HBM)
