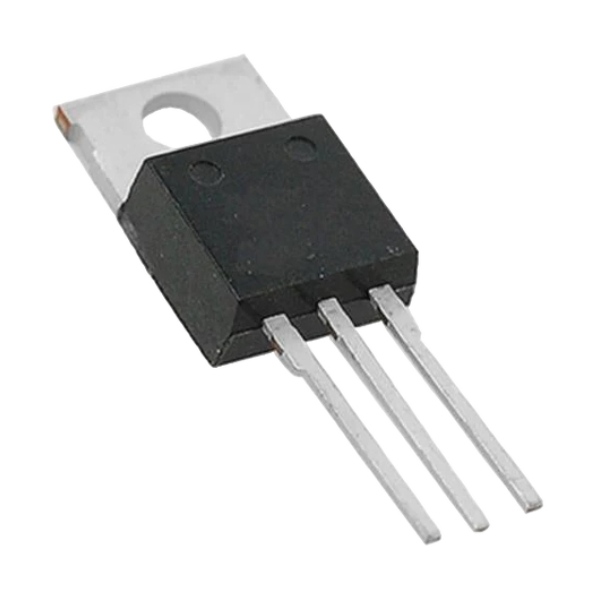

IRF820 Mosfet
SKU: MOS-0092-B09
Sold by Select Automation
Final price R 36.73
R 31.94 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The IRF820 is a rugged N-channel power MOSFET designed for high-voltage, high-speed switching applications. With a drain-source voltage rating of 500V and a continuous drain current of 2.5A, it’s commonly used in SMPS (switch-mode power supplies), motor drivers, DC-AC converters, and relay control circuits. Its TO-220 package allows for efficient heat dissipation, and its low gate charge and fast switching speed make it ideal for demanding power electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: N-Channel Enhancement-Mode Power MOSFET
Package: TO-220AB
Drain-Source Voltage (VDS): 500V
Gate-Source Voltage (VGS): ±30V
Continuous Drain Current (ID):2.5A at 100°C4A at 25°C
Pulsed Drain Current (IDM): 12A
Drain-Source On Resistance (RDS(on)): ~2.5Ω
Total Gate Charge (Qg): ~20nC
Power Dissipation (Ptot): 80W
Thermal Resistance (Junction-to-Case): 1.56°C/W
Operating Junction Temperature: –55°C to +150°C
Avalanche Energy (EAS): 210mJ
