NEMA 17 34MM 5MM Bore Stepper Motor
SKU: MOT-0001-Q01
Sold by Select Automation
Final price R 277.90
R 241.65 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

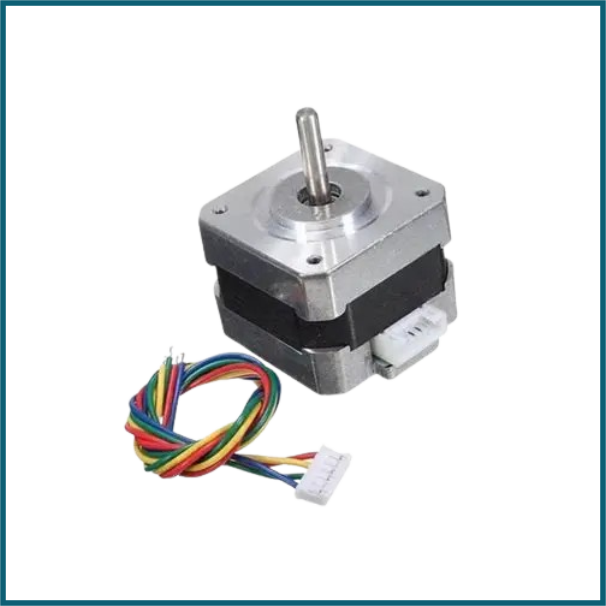

With its 34mm body length and 5mm bore, the NEMA 17 stepper motor is a well-liked option for many uses, particularly in CNC machines and 3D printers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Step Angle: 1.8° (200 steps per revolution)
Rated Voltage: 4.83V
Rated Current: 0.84A
Phase Resistance: 5.75 ohms ± 10% at 20°C
Phase Inductance: 9.3 mH ± 20% at 1kHz
Holding Torque: 0.28 Nm
Shaft Diameter: 5mm
Shaft Length: 22mm12
This motor works well for high torque at low speeds and accurate control.
