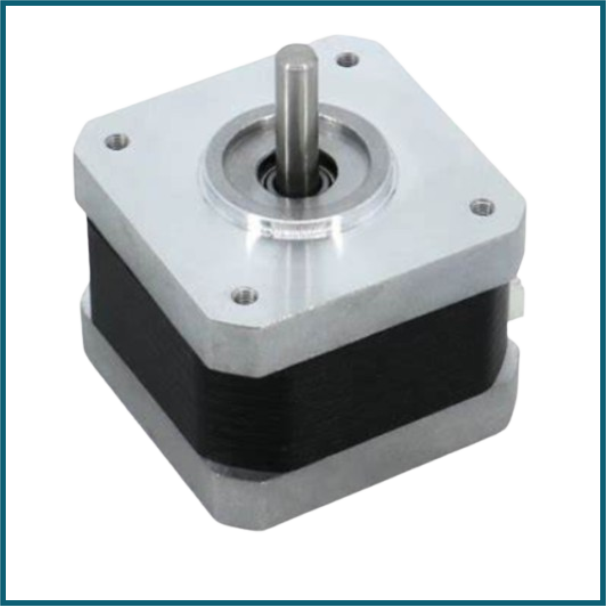

NEMA 17 Stepper 1.8 DEG Motor
SKU: MOT-0004-Q01
Sold by Select Automation
Final price R 531.52
R 462.19 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NEMA 17 Stepper Motor with a 1.8-degree step angle from PrimoPal is a popular choice for precision motion control applications.
Key Features:
Small Size
High Accuracy
Low Inertia
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Step Angle: 1.8°
Step Angle Accuracy: ±5% (full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 °C Max.(rated current, 2 phase on)
Ambient Temperature: -20 °C ~ +50 °C
Insulation Resistance: 100MOHM Min., 500VDC
Dielectric Strength: 500 VC for one minute
Shaft Radial Play: 0.02 Max. (450 g-load)
Shaft Axial Play: 0.08 Max. (450 g-load)
Size / Dimension Square - 1.669 x 1.669, 42.40mmx42.40mm
