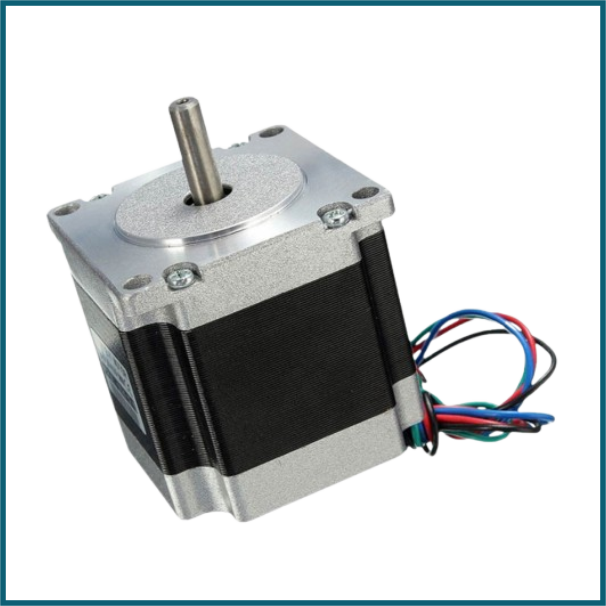

NEMA 23 56MM 8MM Stepper Motor
SKU: MOT-0006-Q01
Sold by Select Automation
Final price R 792.87
R 689.45 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ideal powerful option for your Ultimaker extruder, Reprap, Makerbot, and other 3D printers and CNC machines is the NEMA23 56mm 8mm Stepper Motor.
With four lead wires and a two-phase bipolar arrangement, this stepper motor offers accurate and dependable motion control.
Its rated voltage of 24V and rated current of 3A provide the ideal power to easily handle demanding jobs. Whether you're doing complex CNC machining or quick prototyping, this motor gives you the strength and stability you need to get excellent results.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motor Type: NEMA23
Configuration: 2 Phase Bipolar
Lead Wires: 4
Rated Voltage: 24V
Rated Current: 3A
Holding Torque: 1.3N.m
Step Angle: 1.8°
Additional Specifications:
Motor Type: Hybrid Stepper Motor
Frame Size: NEMA23 (56mm)
Motor Length: 56mm
Phase: 2
Configuration: Bipolar
Step Angle: 1.8 degrees
Holding Torque: 1.3N.m
Rated Voltage: 24V
Rated Current: 3A
Resistance per Phase: 1.2Ω
Inductance per Phase: 4mH
Detent Torque: 0.22N.cm
Rotor Inertia: 300g.cm²
Mass: 1.1kg
Dimensions:
Shaft Diameter: 8mm
Shaft Length: Variable (depends on specific model)
Motor Depth: 56mm
Motor Width: 56mm
Mounting Hole Size: M3
Mounting Hole Spacing: 42mm x 42mm (center to center)
Weight: 1.1kg
Compatibility:
Suitable for Ultimaker extruders
Compatible with Reprap and Makerbot 3D printers
Ideal for various CNC machines
