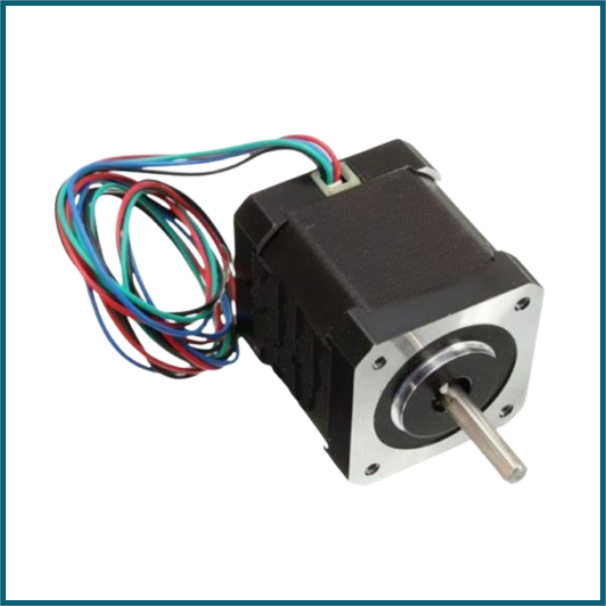

Nema 17 PHH42S48-402 Hybrid Stepper Motor 2 Phase 48mm
SKU: MOT-0013-Q01
Sold by Select Automation
Final price R 363.94
R 316.47 excl. VAT
Availability: In Stock (23 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PHH42S48-402 is a compact and precise Nema 17 hybrid stepper motor intended for high-accuracy motion control applications.
With a body length of 48mm, it provides consistent torque and smooth operation, making it perfect for 3D printers, CNC machines, robots, and automated systems.
The key features include:
High precision: 1.8° step angle with ±5% precision.
High Torque: Ideal for handling heavy mechanical loads.
Low inertia enables rapid response and precise positioning.
Durable construction: intended for long-term industrial use.
This motor is frequently used in systems that require precise and regulated movement, and it works well with common stepper drivers and controllers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motor Type: Nema 17 Hybrid Stepper Motor.
Phase: 2-phase.
Body Length: 48 mm.
Step Angle: 1.8° per step.
Step Angle Accuracy: ±5% (full step, no load).
Rated Current: 1.7A.
Rated Voltage: ~2.8V (depends on driver setup).
Holding Torque: ~4.4 kg·cm.
Shaft Diameter: 5 mm.
Resistance Accuracy: ±10%.
Inductance Accuracy: ±20%.
Temperature Rise: ≤80°C.
Applications: 3D printers, CNC machines, robotics, automation systems.
