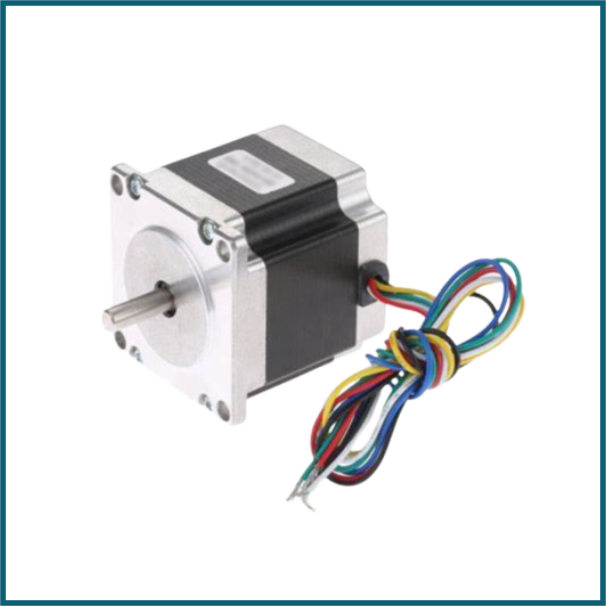

Nema 23 PHB57S41 Hybrid Stepper Motor 2 Phase 41mm
SKU: MOT-0015-Q01
Sold by Select Automation
Final price R 264.87
R 230.32 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Nema 23 PHB57S41 Hybrid Stepper Motor 2 Phase 41mm:
The NEMA 23 PHB57S41 is a hybrid stepper motor that can be used in both unipolar and bipolar configurations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Step Angle: 1.8° (200 steps per revolution)
Current per Phase: 1 A
Voltage per Phase: 5.7 V
Holding Torque: 4 kg-cm (55 oz-in)
Dimensions: 56.4 mm square × 41 mm (not including the shaft)
Shaft Diameter: 6.35 mm (0.25″) “D” shape
Lead Length: 30 cm (12″)
This motor is versatile and can be controlled by both unipolar and bipolar stepper motor drivers. It is often used in applications requiring precise control, such as CNC machines and 3D printers
