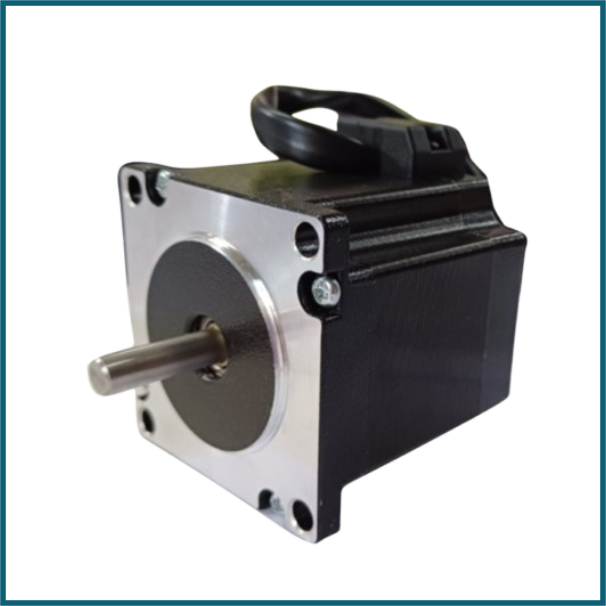

Nema 23 Hybrid Stepper Motor 2 Phase 56mm, PHB57S56-430A
SKU: MOT-0016-Q01
Sold by Select Automation
Final price R 535.76
R 465.88 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Key Features:
High Torque.
Smooth Movement.
High Speed.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Step Angle: 1.8°
Step Angle Accuracy: ±5% (full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 °C Max.(rated current, 2 phase on)
Ambient Temperature: -20 °C ~ +50 °C
Insulation Resistance: 100MOHM Min., 500VDC
Dielectric Strength: 500 VAC for one minute
Shaft Radial Play: 0.02 Max. (450 g-load)
Shaft Axial Play: 0.08 Max. (450 g-load)
Specifications:
Bi-Polar
Holding Torque: 110 N.cm 154 oz-in
Rated Current: 3.0 A
Resistance per phase: 0.8 ohm
Inductance per phase: 2.4 mH
Detent Torque: 3.5 N.cm 4.9 oz-in
Rotor Inertia: 280 g.cm² 1.540 oz-in²
Mechanical Dimension:
L mm (in.): 56 (2.20)
Mass g (lb.): 680 (1.50)
