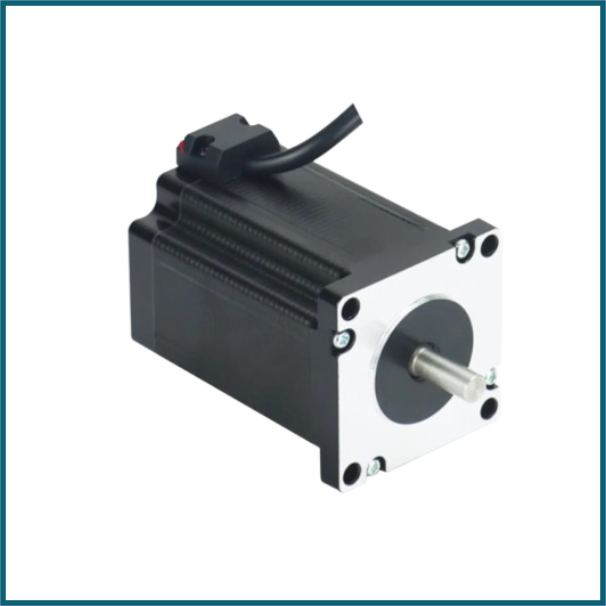

NEMA 23 Hybrid Stepper Motor 2 Phase 80 mm, PHB57S80
SKU: MOT-0018-Q01
Sold by Select Automation
Final price R 685.40
R 596.00 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PHB57S80 is a high-performance NEMA 23 hybrid stepper motor intended for precise motion control applications.
Its body length of 80 mm provides increased torque and smooth operation, making it perfect for CNC machines, 3D printers, robotics, and industrial automation applications.
Step angle: 1.8° per step for precise placement.
Phase Configuration: Two-phase bipolar for reliable control.
High Torque Output: Ideal for handling heavy mechanical loads.
Accuracy: Step angle ±5%, resistance ±10%, and inductance ±20%.
Applications include linear actuators, precision drives, and automated systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motor Type: NEMA 23 hybrid stepper motor.
Phase: 2-phase bipolar.
Step Angle: 1.8° per step (200 steps/revolution).
Step Angle Accuracy: ±5% (full step, no load).
Rated Current: 2.8A.
Phase Resistance: ~1.1Ω ±10%.
Phase Inductance: ~3.6mH ±20%.
Holding Torque: ~1.9 N·m.
Motor Length: 80mm.
Shaft Diameter: 6.35mm (standard for NEMA 23).
Temperature Rise: ≤80°C.
Applications: CNC machines, 3D printers, robotics, automation systems.
