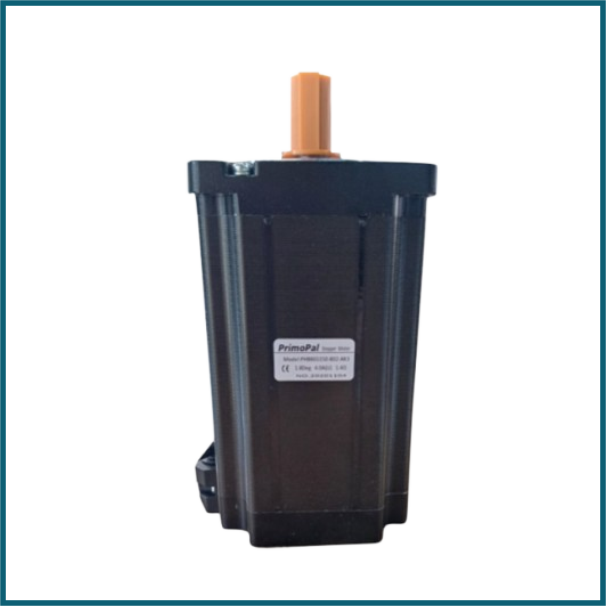

Nema 34 Hybrid Stepper Motor 2 Phase 114mm, PHB86S114-802
SKU: MOT-0021-Q01
Sold by Select Automation
Final price R 1,835.10
R 1,595.74 excl. VAT
Availability: In Stock (12 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Key Features:
High Torque.
Smooth Movement.
High Accuracy.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Step Angle: 1.8 Degrees
Step Angle Accuracy: +-5% (full step, no load)
Resistance Accuracy: +-10%
Inductance Accuracy: +-20%
Temperature Rise: 80 Degree C Max.(rated current)
Ambient Temperature: -20 Degree Celsius ~ +50 Degree Celsius
Insulation Resistance: 100 MOHM Min., 500VDC
Dielectric Strength: 500 VAC for one minute
Shaft Radial Play: 0.02 Max. (450 g-load)
Shaft Axial Play: 0.08 Max. (450 g-load)
Specifications:
8 Wires
Holding Torque: 820 N.cm 1148 oz-in
Detent Torque: 12.5 N.cm 17.5 oz-in
Rotor Inertia: 1800 g.cm² 9.900 oz-in²
Mechanical dimensions:
L mm (in.): 114 (4.49)
Mass kg (lb.): 4.0 (8.80)
