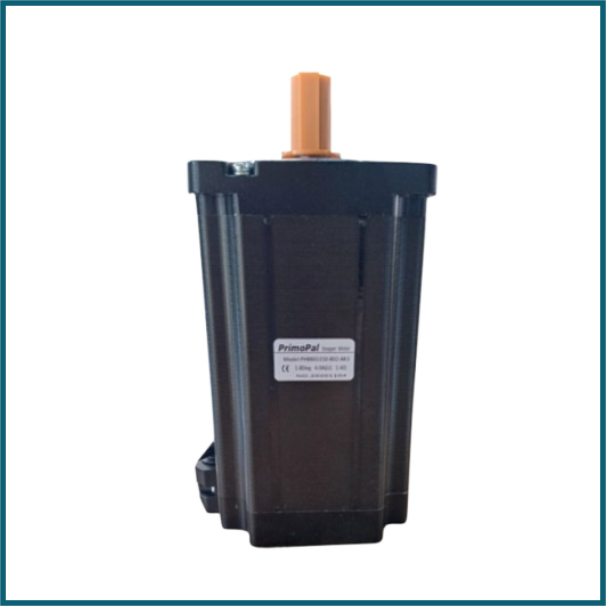

Nema 34 Hybrid Stepper Motor 2 Phase 150mm, PHB86S150
SKU: MOT-0022-Q01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Key Features:
The PHB86S150 is a 2-phase hybrid stepper motor designed for various applications.
High Torque.
Smooth Movement.
High Accuracy.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Step Angle:1.8°
Step Angle Accuracy:±5% (full step, no load)
Resistance Accuracy:±10%
Inductance Accuracy:±20%
Temperature Rise:80 °C Max.(rated current)
Ambient Temperature:-20 °C ~ +50 °C
Insulation Resistance:100 MΩ Min., 500VDC
Dielectric Strength:820 VAC for one minute
Shaft Radial Play:0.02 Max. (450 g-load)
Shaft Axial Play:0.08 Max. (450 g-load)
Specifications:
Current: 5.6A
Resistance: 0.7 Ohm
Inductance: 9.2 mH
Holding Torque: 1200 N.cm
Detent Torque: 24.5 N.cm
Rotor Inertia: 2.50 kg.cm 1
Dimentions:
L mm(in.): 150(5.91)
Mass kg(lb.): 5.0(11.0)
