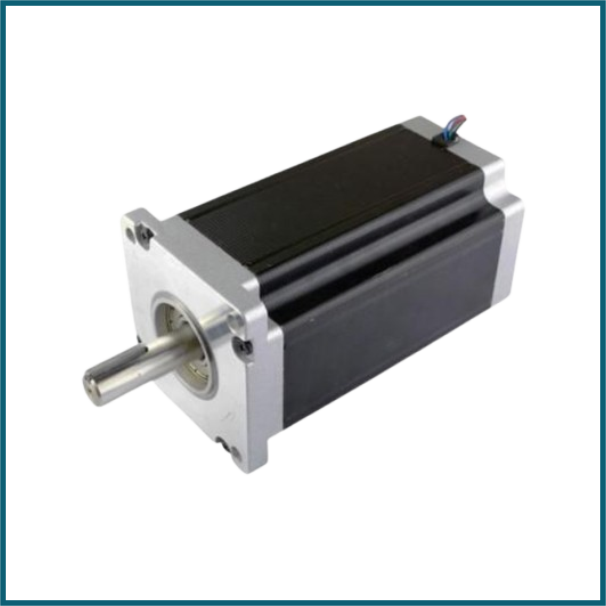

Nema 42 PHB110S200 Hybrid Stepper Motor 2 Phase 200mm
SKU: MOT-0025-Q01
Sold by Select Automation
Final price R 8,960.20
R 7,791.48 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PHB110S NEMA 42 1.8°:
PrimoPal Motor specializes in development, production and selling of various high-quality precision motor and motion control products, including stepper motors, brushless DC motor, servo systems, Linear actuators, linear guide, Linear module, electric cylinder, PM DC motors, spindle motors, AC induction motors, geared motors, drives, controllers, and so on.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
High Torque
Smooth Movement
High Inertia
Features:
Step Angle: 1.8°
Step Angle Accuracy: ±5% (full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 °C Max.(rated current, 2 phase on)
Ambient Temperature: -20 °C ~ +50 °C
Insulation Resistance: 100 MΩ Min., 500VDC
Dielectric Strength: 1800 VAC for one minute
Shaft Radial Play: 0.02 Max. (450 g-load)
Shaft Axial Play: 0.08 Max. (450 g-load)
Specifications:
Rated Current: 6.0 A
Resistance per phase: 1.1 ohm
Length: 200mm.
