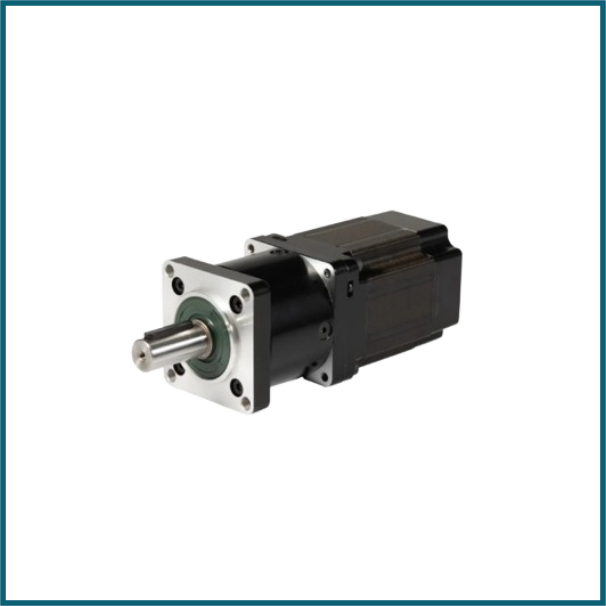

Nema 23 Geared Stepper Motor 2 Phase 57mm 10:1, PHG57S56-430-PR10
SKU: MOT-0030-Q01
Sold by Select Automation
Final price R 2,046.44
R 1,779.51 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The PHG57S56-430-PR10 is a high-performance Nema 23 stepper motor with a 10:1 planetary gearbox, ideal for applications that require great torque and precision.
PrimoPal Motor manufactures this unit as part of their hybrid stepper gearbox line, which is noted for its durability and accuracy.
The key features include:
High Torque: The 10:1 gear reduction enhances torque, making it excellent for heavy-duty applications.
High Precision: Ideal for accurate positioning in CNC, robotics, and automation.
Long Lifespan: Constructed from industrial-grade materials for longer operational life.
This motor is commonly utilized in motion control applications such as linear actuators, electric cylinders, and automated machinery.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Motor Type: Nema 23 hybrid stepper motor.
Phase: 2-phase.
Motor Size: 57mm × 56mm (body length).
Step Angle: 1.8° per step.
Gearbox Type: Planetary gearbox.
Gear Ratio: 10:1.
Rated Current: 4.3A.
Holding Torque: Significantly increased due to gear reduction.
Shaft Diameter: ~8 mm (gearbox output).
Applications: CNC machines, 3D printers, robotics, industrial automation.
