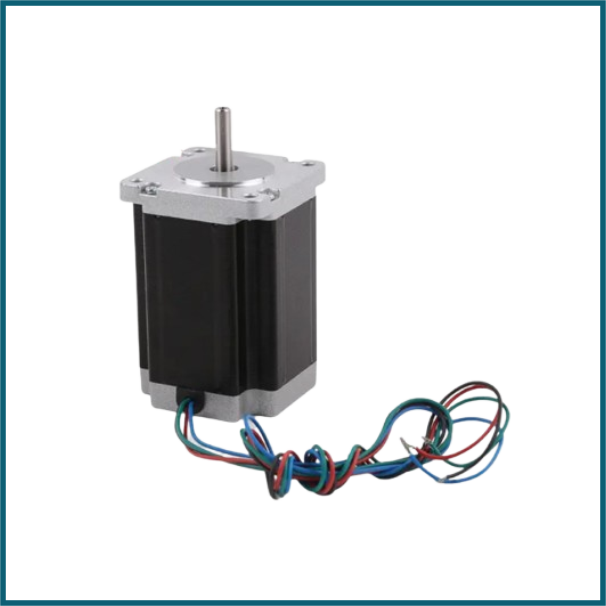

Nema 23 Stepper DC Gear Motor 57mm 15:1
SKU: MOT-0032-Q01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With a 57mm frame size and a 15:1 gear ratio, the Nema 23 stepper motor is a strong and adaptable motor that is frequently utilized in applications that call for precision control and high torque.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Frame Size: 57 x 57mm
Gear Ratio: 15:1 (Planetary Gearbox)
Step Angle: Approximately 0.12 degrees with the gearbox
Holding Torque: Without gearbox, around 1.25Nm (177.01 oz.in)
Rated Current: 2.8A per phase
Phase Resistance: 0.9 ohms
Inductance: 2.5mH ± 20% (1KHz)
Efficiency: 81%
Backlash at No-load: ≤3 degrees
Maximum Permissible Torque: 30Nm (4248 oz.in)
Weight: Approximately 1.5kg
Applications like CNC machines, 3D printers, and robotics that need low speed and great torque yet have limited space are perfect for this motor.
