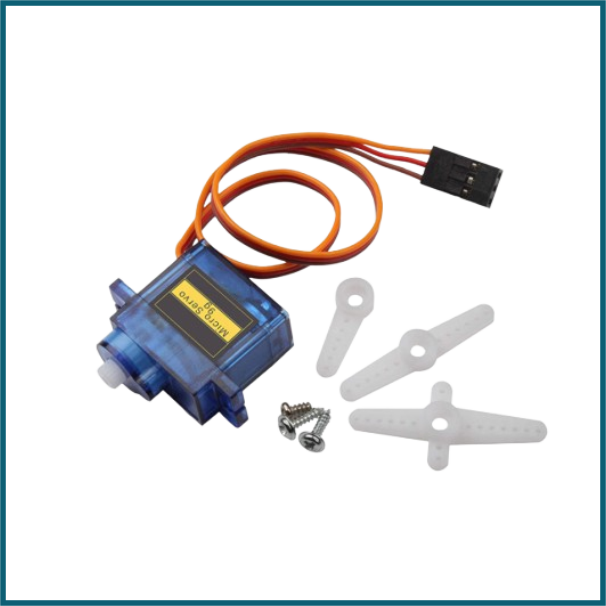

Mini Micro Servo 9g TS90D Servo Motor 360 Degree Digital
SKU: MOT-0049-Q01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Digital Apply Environmental Condition:
Storage Temperature Range: -30°C～80°C
Operating Temperature Range: -25°C～70°C
Humidity Range: 65% ±10%
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Operat voltage: 4.8V -6.0V
No load speed: 0.09sec/60° (4.8V) , 0.07sec/60°(6V)
No-load current : 90mA/4.8AV , 180mA /6V
Stall current : Max 550mA ±10% (4.8V) , Max 750mA±10% (6V )
Size: 22.4*12.5*22.8mm/ 0.88x0.49x0.89 in
Weight:10g±5%
Gear type: Plastic
Limit angle: 360°
Bearing: No
Horn gear spline: 20T (Diameter: 4.9mm /0.19 in )
Horn type: Plastic, POM
Case: Engineering plastics (PBT)
Connector wire: 250mm±5mm / 9.84in±0.02in
Motor: Carbon brush motor
Splash water resistance: No
Control Specification:
Command signal: Pulse width modification
Amplifier type: Digital controller
Signal Period : 20ms
Pulse width range: 500～2500μsec
Neutral position: 1500μsec
Running degree: 270°±3°(when 500～2500μsec)
Running degree: 135°±3°(when 500～1500μsec)
Running degree: 135°±3°(when 2500～1500μsec)
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when 1000～2000μsec)
Connection:
Red wire: Positive +
Black wire: Negative -
Brown wire: Signal S
