Mini Micro Servo 9g TS90D Servo Motor 180 Degree Analog
SKU: MOT-0050-Q01
Sold by Select Automation
Final price R 51.75
R 45.00 excl. VAT
Availability: In Stock (18 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Compact and adaptable, the Mini Micro Servo 9g TS90D servo motor is frequently utilized in a variety of applications.

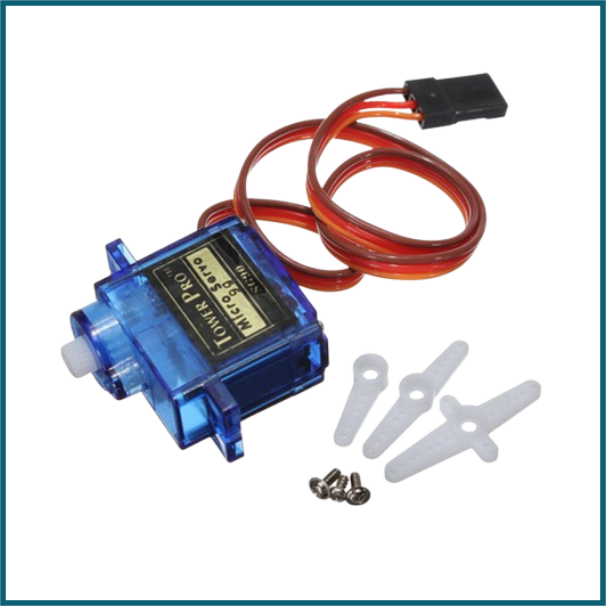

The TS90D Mini Micro Servo is a small, lightweight analogue servo motor intended for fine rotational control in small-scale applications.
With a rotating range of 180 degrees to 90 degrees in each direction, it performs dependably despite weighing only 9 grams.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Rotation Range: About 180 degrees of rotation, or 90 degrees in each direction, are possible.
Speed: It runs at 0.09 sec/60° at 4.8V and 0.08 sec/60° at 6V when there is no load.
Torque: 17.5 oz/in (1 kg/cm) is the stall torque at 4.8 V.
Voltage Range: 4.8V to 6.0V is the range in which it operates.
It is compatible with both Futaba and JR interfaces.
Applications: Frequently utilized in gliders, small robots, robotic arms, helicopters, fixed-wing aircraft, and gliders.
For do-it-yourself projects, such as those utilizing Arduino and other microcontroller platforms, this servo motor is perfect.
