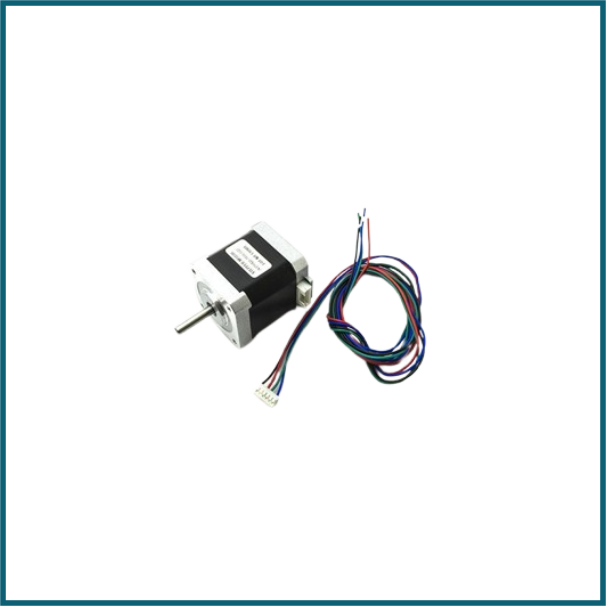

Nema 17 1.8" Stepper Motor 63mm
SKU: MOT-0060-Q01
Sold by Select Automation
Final price R 402.50
R 350.00 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Stepper Motors are ingenious Electromechanical devices that are quite distinct from standard DC Motors and servo motors, as they specialise in rotational torque, holding torque and linear motion along guiderails or defined paths. This is due to the incredibly high level of precision in rotation and power, resulting in consistent accuracy that you can not only rely on, but even use as tools of measurement if necessary due to the high precision, specific step angles, and predefined steps per full revolution
Buy currently uses Select Automation shop pricing and checkout.
Specification:
Frame Size– 42 x 42mm
Body Length– 63mm
Shaft Diameter– 5mm
Shaft Length– 18mm
Step Angle– 1.8°
Rated Voltage: 24V DC.
Rated Current 1.3A DC
Holding Torque 0.3 N-m min
Resistance 1.6 Ohm +/- 10%
Inductance 3.2mH +/- 10%
