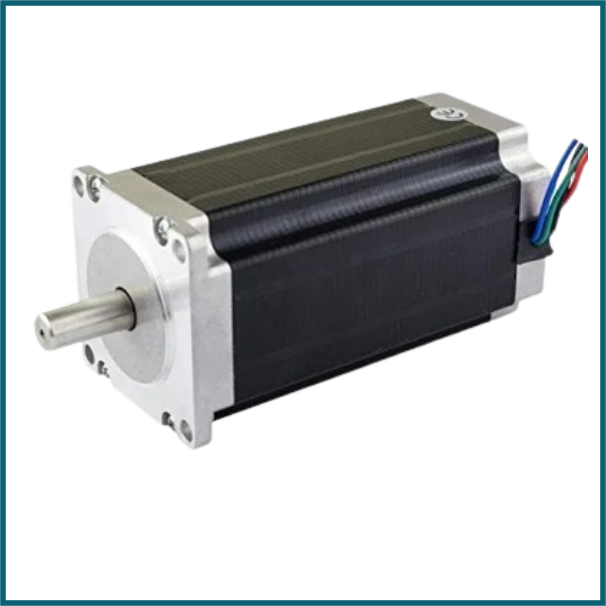

Nema 23 1.8" Stepper Motor 112mm
SKU: MOT-0062-Q01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Stepper Motors are ingenious Electromechanical devices that are quite distinct from standard DC Motors and servo motors, as they specialise in rotational torque, holding torque and linear motion along guiderails or defined paths. This is due to the incredibly high level of precision in rotation and power, resulting in consistent accuracy that you can not only rely on, but even use as tools of measurement if necessary due to the high precision, specific step angles, and predefined steps per full revolution
Buy currently uses Select Automation shop pricing and checkout.
Specification:
Size: NEMA 23 (57mm x 57mm)
Length: 112mm
Step angle: 1.8 Degrees
Rated voltage: 3.4 V DC
Current/Phase: 4.2A
Resistance/Phase: 1.4 Ohm
Inductance/Phase: 9mH
Holding Torque: 2.3NNm Min
Number of leads: 4
