Top console, 500x600x494, Combinable enclosure, no MP, mild steel, IP66
SKU: MPC061R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

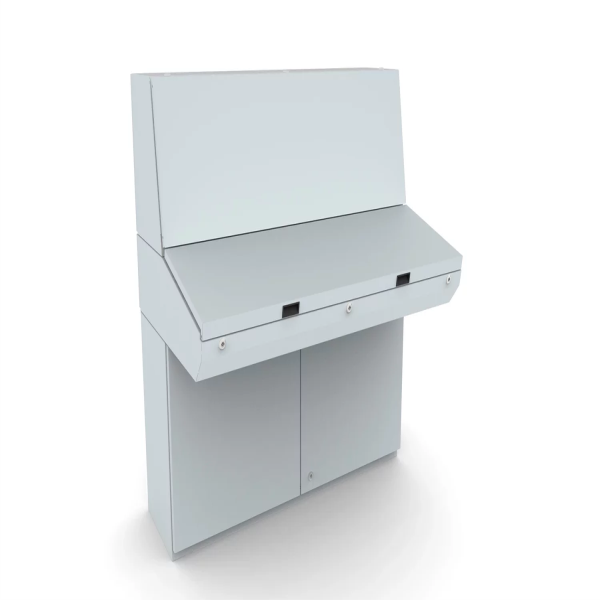

For industrial use, Vent Hoffman Top Console MPC061R5 is a durable and adaptable combinable enclosure.
With an IP66 rating, this mild steel console system is designed to offer a high level of protection, making it appropriate for use in challenging locations.
The console offers a modular design with three removable sections—top, desk, and bottom—allowing for multiple configurations to satisfy individual design requirements.
Its ergonomic form provides quick installation and access to HMI equipment, boosting operating efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel.
Construction:
Folded and seam welded body.
Single folded surface-mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Integrated plinth providing distance between the floor and the lower part of the door.
Dimensions:
Height: 500 mm.
Width: 600 mm.
Depth: 494 mm.
Protection:
Single door: IP66 | TYPE 4, 12, 13 | IK 10.
Double door: IP55 | TYPE 12, 13 | IK 10.
Finish: Powder coated in light grey (RAL 7035).
Weight: 27.4 kg.
