Top console, 500x800x494, Combinable enclosure, no MP, mild steel, IP66
SKU: MPC081R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

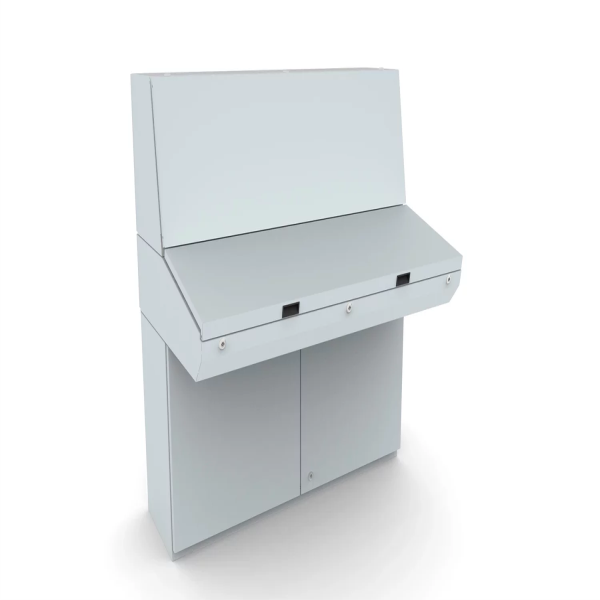

The nVent Hoffman Top Console MPC081R5 is a versatile and sturdy combinable enclosure ideal for industrial applications.
This top console is suited for severe settings because it is made of mild steel and has an IP66 rating, which provides strong protection.
The console is a component of an adaptable system with three detachable sections: a top, a desk, and a bottom. This allows for different configurations to satisfy different operating and design requirements.
Its ergonomic design makes equipment installation and access simple, improving both user comfort and operating efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel (optional).
Construction:
Folded and seam welded body.
Single folded surface-mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Integrated plinth providing distance between the floor and the lower part of the door.
Dimensions:
Height: 500 mm.
Width: 800 mm.
Depth: 494 mm.
Protection:
Single door: IP66 | TYPE 4, 12, 13 | IK 10.
Double door: IP55 | TYPE 12, 13 | IK 10.
Finish: Powder coated in light grey (RAL 7035).
Weight: 35.6 kg.
