Desk console, 250x800x985, Combinable enclosure, no MP, mild steel, IP66
SKU: MPC082R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

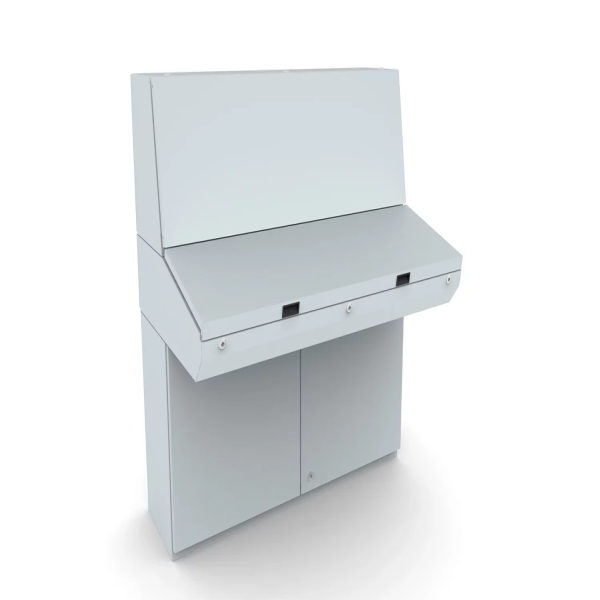

Designed for industrial situations, the Vent Hoffman Desk Console MPC082R5 is a highly versatile and robust combinable enclosure.
This desk console is made of mild steel and has an IP66 rating, which means it is resistant to hostile environments.
The console is a component of an adaptable system with three detachable sections: a top, a desk, and a bottom. This allows for different configurations to satisfy different operating and design requirements.
Because of its ergonomic design, users can install and access HMI equipment more easily, which increases comfort and efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel (optional).
Construction:
Folded and seam welded body.
Single folded surface-mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Integrated plinth providing distance between the floor and the lower part of the door.
Dimensions:
Height: 250 mm.
Width: 800 mm.
Depth: 985 mm.
Protection:
Single door: IP66 | TYPE 4, 12, 13 | IK 10.
Double door: IP55 | TYPE 12, 13 | IK 10.
Finish: Powder coated in light grey (RAL 7035).
Weight: 32.4 kg.
