      Desk console, 250x1000x985, Combinable enclosure, no MP, mild steel, IP66

      SKU: MPC102R5

      Out of stock

      Availability: Out of Stock

      Short Description

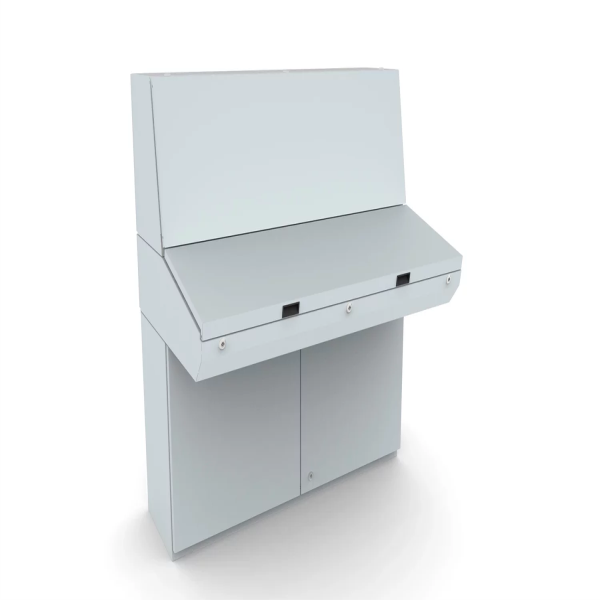

      Pricing available on request Description: A sturdy and adaptable combinable enclosure, the Vent Hoffman Desk Console MPC102R5 is built for a range of industrial applications. The three removable pieces of this mild steel console system—the top, desk, and bottom—allow for a variety of configurations to satisfy various design specifications. The top and desk units' ergonomic designs make it easier to install and access HMI equipment, increasing the amount of mounting space that is accessible. This console is appropriate for severe settings because it has an IP66 protection grade, which guarantees strong resistance to dust and water penetration. The base of the console serves as an integrated plinth by creating a space between the floor and the bottom of the doors.
      MPC102R5
      Alternative image 1
      Specifications: Material: Body and door: 1.5 mm mild steel. Rear panel: 1.5 mm mild steel. Bottom plates: 1.2 mm galvanized steel. Mounting plate: 2.5 mm galvanized steel. Dimensions: Height: 250 mm. Width: 1000 mm. Depth: 985 mm. Construction: Folded and seam welded body. Single folded surface mounted doors and panels with hinges. Concealed hinges allowing 90° opening on the desk. Double door on 1200 and 1600 mm wide base units. Protection: Single door: IP66 | TYPE 4, 12, 13 | IK10. Double door: IP55 | TYPE 12, 13 | IK10. Finish: RAL 7035 structured powder coating. Weight: 43 kg.
