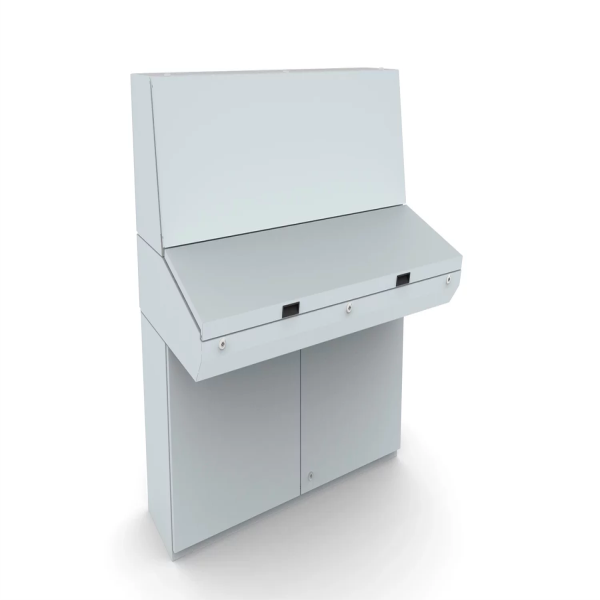

Base console, 700x1000x500, Combinable enclosure, with MP, mild steel, IP66
SKU: MPC103R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Designed for industrial applications, the nVent Hoffman Base Console MPC103R5 is a highly versatile and robust combinable enclosure.
The top, desk, and bottom of this mild steel console system are all replaceable, providing for a variety of configurations to satisfy different design specifications.
The top and desk units' ergonomic designs make it easier to install and access HMI equipment, increasing the amount of mounting space that is accessible.
This console is appropriate for severe settings because it has an IP66 protection grade, which guarantees strong resistance to dust and water penetration.
The base of the console serves as an integrated plinth by creating a space between the floor and the bottom of the doors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel.
Dimensions:
Height: 700 mm.
Width: 1000 mm.
Depth: 500 mm.
Construction:
Folded and seam welded body.
Single folded surface mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Double door on 1200 and 1600 mm wide base units.
Protection:
Single door: IP66 | TYPE 4, 12, 13 | IK10.
Double door: IP55 | TYPE 12, 13 | IK10.
Finish: RAL 7035 structured powder coating.
Weight: 58 kg.
