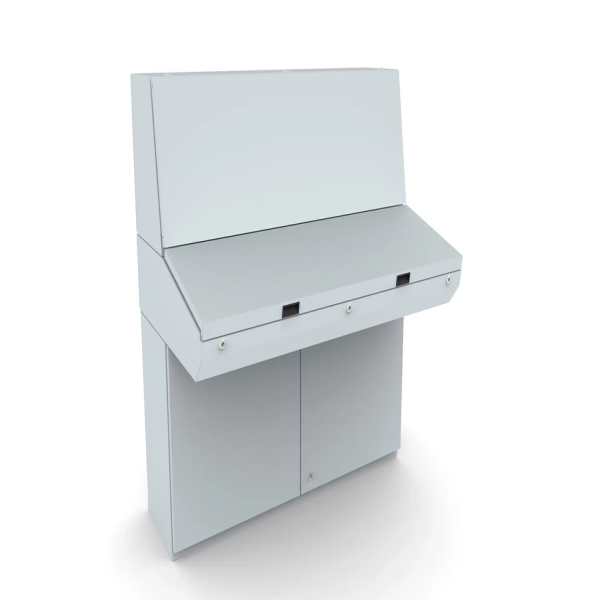

Top console, 500x1200x494, Combinable enclosure, no MP, mild steel, IP55
SKU: MPC121R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, Vent Hoffman Top Console MPC121R5 is a robust and adaptable combinable enclosure.
The top, desk, and bottom of this mild steel console system are all replaceable, providing for a variety of configurations to satisfy different design specifications.
The top and desk units' ergonomic designs make it easier to install and access HMI equipment, increasing the amount of mounting space that is accessible.
This console is appropriate for usage in somewhat tough situations because of its IP55 protection grade, which guarantees a high level of resistance to dust and water infiltration.
The base of the console serves as an integrated plinth by creating a space between the floor and the bottom of the doors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: Not included.
Dimensions:
Height: 500 mm.
Width: 1200 mm.
Depth: 494 mm.
Construction:
Folded and seam welded body.
Single folded surface mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Double door on 1200 and 1600 mm wide base units.
Protection:
Single door: IP55 | TYPE 12, 13 | IK10.
Double door: IP55 | TYPE 12, 13 | IK10.
Finish: RAL 7035 structured powder coating.
Weight: 45 kg.
