Desk console, 250x1200x985, Combinable enclosure, no MP, mild steel, IP55
SKU: MPC122R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

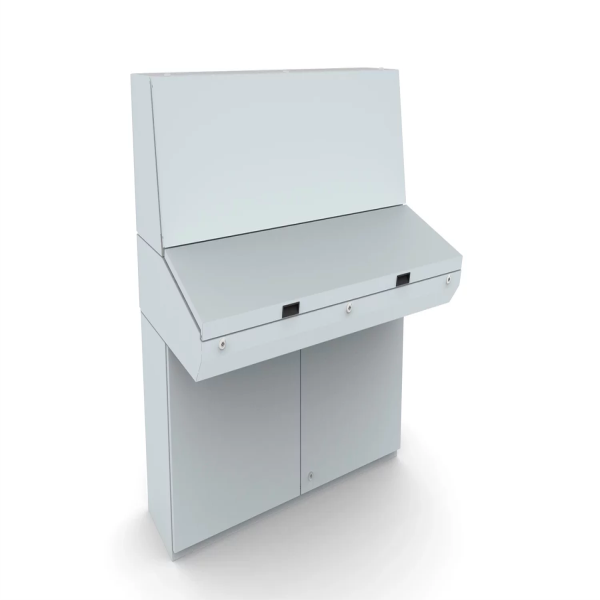

For industrial use, Vent Hoffman Desk Console MPC122R5 is a sturdy and adaptable combinable enclosure.
With an IP55 protection rating, this mild steel console system is guaranteed to be water jet and dust tight.
The top, desk, and bottom portions of the console are removable, enabling a variety of configurations to satisfy different design specifications.
The whole user experience is improved by its ergonomic design, which makes installation and access to HMI equipment simple.
The console’s structure features a base that works as an integrated plinth, giving stability and ease of access.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel.
Dimensions:
Height: 250 mm.
Width: 1200 mm.
Depth: 985 mm.
Construction:
Folded and seam welded body.
Single folded surface-mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Double door on 1200 mm wide base units.
Protection:
IP55 rating.
IK10 impact resistance.
Weight: 54 kg.
