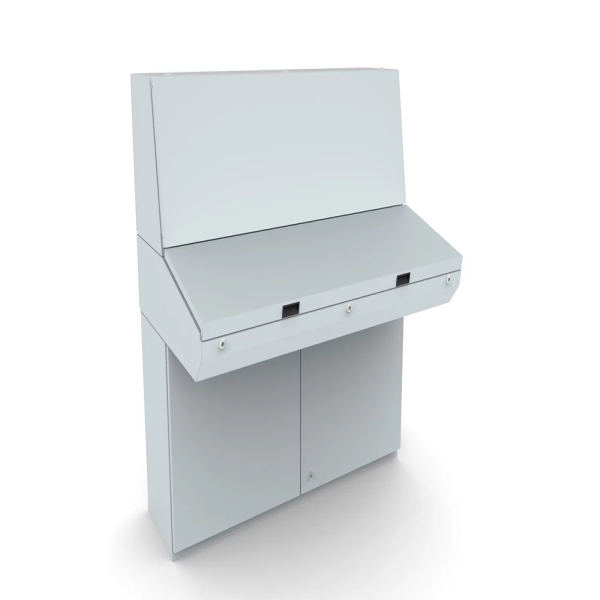

Top console, 500x1600x494, Combinable enclosure, no MP, mild steel, IP55
SKU: MPC161R5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The nVent Hoffman Top Console MPC161R5 is a versatile and strong combinable enclosure ideal for industrial applications.
With an IP55 protection rating, this mild steel console system is guaranteed to be water jet and dust tight.
The top, desk, and bottom portions of the console are removable, enabling a variety of configurations to satisfy different design specifications.
The whole user experience is improved by its ergonomic design, which makes installation and access to HMI equipment simple.
The base of the console serves as an integrated plinth and offers stability and accessibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body and door: 1.5 mm mild steel.
Rear panel: 1.5 mm mild steel.
Bottom plates: 1.2 mm galvanized steel.
Mounting plate: 2.5 mm galvanized steel.
Dimensions:
Height: 500 mm.
Width: 1600 mm.
Depth: 494 mm.
Construction:
Folded and seam welded body.
Single folded surface-mounted doors and panels with hinges.
Concealed hinges allowing 90° opening on the desk.
Double door on 1200 mm and 1600 mm wide base units.
Protection:
IP55 rating.
IK10 impact resistance.
Finish: RAL 7035 structured powder coating.
Weight: 54 kg.
