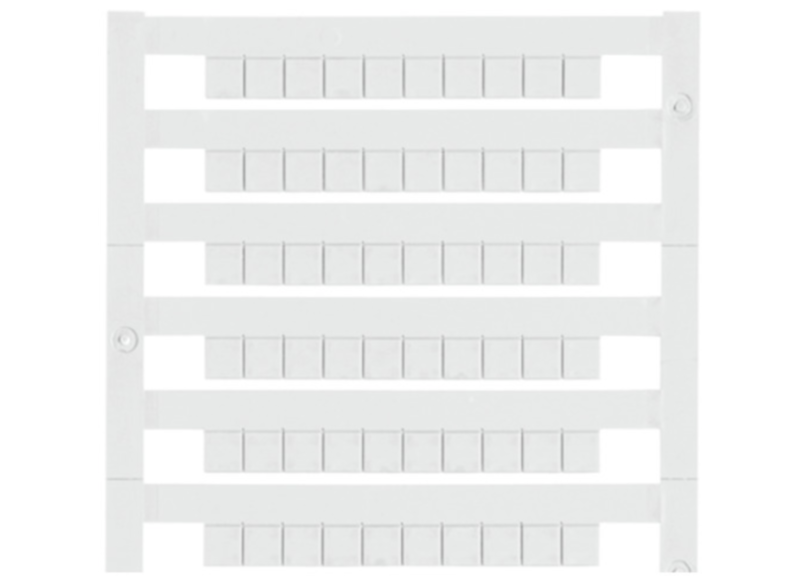

DEK 5/5 MC-10 NE WS Terminal Marker, white (Per strip of 10)
SKU: MRK-0003-B14
Sold by Select Automation
Final price R 0.98
R 0.85 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The dekafix (DEK) marker is used to identify all conductors, plug-in connectors, and electronic sub-assemblies.
The system is suited for short number sequences and includes a wide variety of ready-printed markers.
Strips for quick installation in one step.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Description of article: Multi-Card markers for labelling terminals.
Markings:
Cadmium: No.
Can be printed with plotter: Yes.
Can be written with laser printer: No.
Material: Polyamide 66.
Operating temperature range, min.: -40 °C.
Operating temperature range, max.: 100 °C.
Pin can be written (STI): Yes.
Print Jet: Yes.
Speed marking laser: Yes.
Can be labelled with thermal transfer printers: No.
Can be written with dot-matrix printer: No.
Colour: White.
Halogen: No.
Material colour according to resistance code: 9.
Pitch in mm (P): 5 mm.
Silicone: No.
UL 94 flammability rating: V-2
Dimensions and weights:
Length: 5 mm.
Width: 5 mm.
Net weight: 0.126 g.
