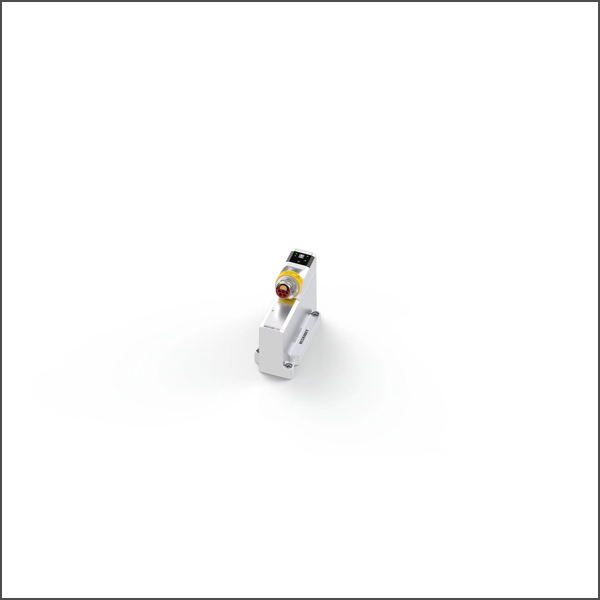

System module MS2210-0021-1114
SKU: MS2210-0021-1114
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS2210-0021-1114 EtherCAT power infeed module serves as the link between the EtherCAT protocol and the MX-System modules. In addition to coupling the data communication, the integrated B17 hybrid connector is also used to feed the control voltage of 24 V DC and 48 V AC with up to 10 A into the MX-System.
Buy currently uses Select Automation shop pricing and checkout.
Product category: system modules
Category/version: EtherCAT power infeed
Output voltage data connector: 24/48 V DC
Output current data connector: 10 A
Connection method: B17
External supply voltage: 24/48 V DC
External feed current: 10 A max.
Distance between stations: max. 100 m (100BASE-TX)
Baseplate interface: data connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Weight: 400 g
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 30 mm × 110 mm × 72 mm
Number of rows: 1
Number of slots: 1
Material: zinc and aluminium die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
