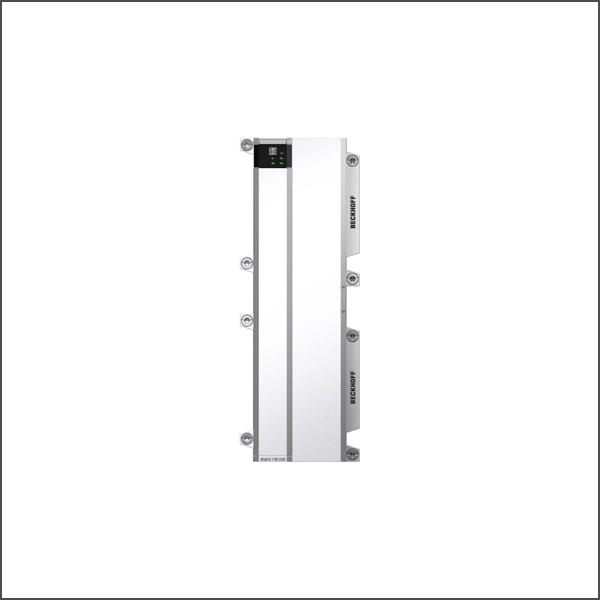

System module MS6018-1100-2240
SKU: MS6018-1100-2240
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS4118-2400-2240 is a three-phase, 24 V DC power supply with an output current of 18 A and an output power of 432 W. On the input side, the device features a wide-range input, active power factor correction (PFC) and inrush current limitation. The output behavior and the output power are individually adjustable.
Buy currently uses Select Automation shop pricing and checkout.
Product category: system modules
Category/version: power supply
Output voltage data connector: 24 V DC
Output current data connector: 18 A
Supply voltage from backplane: 400…480 V AC
Power supply unit: 24 V
Performance: PFC
Baseplate interface: data and power connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 70 mm × 240 mm × 112 mm
Number of rows: 2
Number of slots: 2
Material: zinc and aluminum die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
