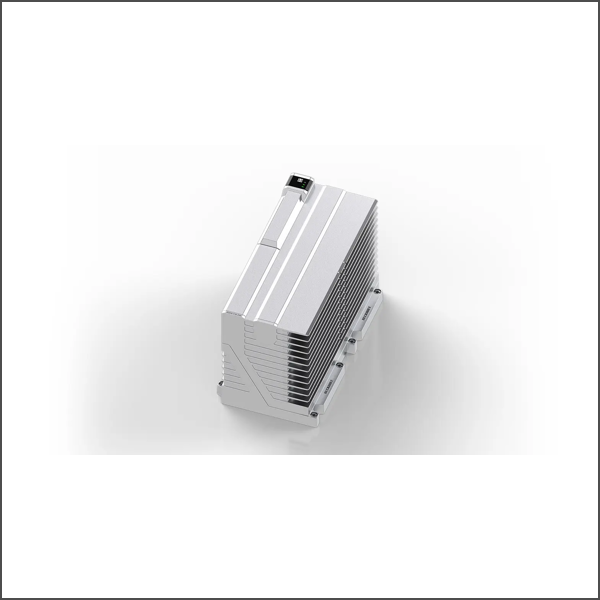

System module MS6040-2100-2340
SKU: MS6040-2100-2340
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS6040-2100-2340 is a 48 V DC power supply with an output current of 40 A. In terms of the input, the module features a wide-range input, active power factor correction (PFC), and inrush current limitation. The output behavior and output power are individually adjustable. In addition, the power supply can feed energy back into the primary side supply.
Buy currently uses Select Automation shop pricing and checkout.
Product category: system modules
Category/version: power supply
Output voltage data connector: 48 V DC
Output current data connector: 40 A
Supply voltage from backplane: 400…480 V AC
Power supply unit: 48 V
Performance: PFC + backfeed
Baseplate interface: data and power connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 70 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 3
Material: zinc die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
