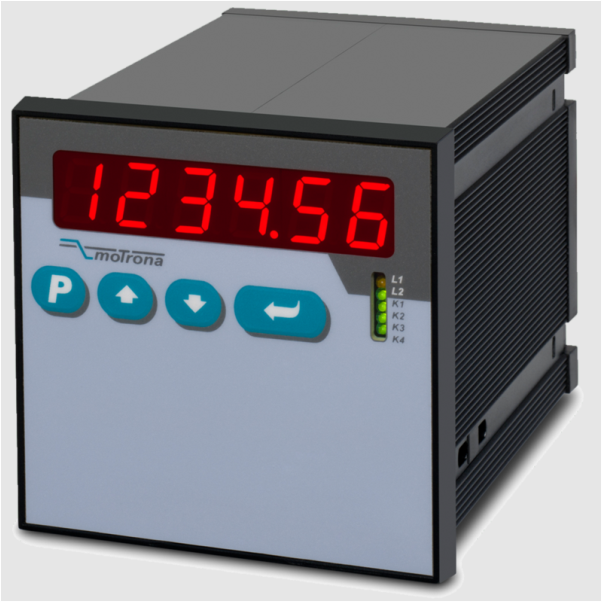

Motion Monitor for Secure and Redundant Control of 2 Drive Systems MS640
SKU: MS640
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
With a high level of internal and exterior safety, the Motrona MS640 Motion Monitor is made for safe and redundant drive system control.
This apparatus is used to monitor motor rotations and related drive-side machine movements in a logical and credible manner.
By contrasting them with preprogrammed setpoint states, it finds actual states at the drive and surrounding area.
The MS640 uses the outputs to send a user-programmed fault message if the movement is implausible or if limit values are exceeded.
Furthermore, both rotary encoders' real values—speed, rotational direction, standstill, actual position, and position difference—can be permanently detected by the monitor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse Inputs: 2 pulse inputs with format A, B, 90° [HTL] or A, /A, B, /B [RS422].
Control Inputs: 4 control inputs for PNP / NPN / Namur signals [10 ... 30 VDC].
Logical Inputs: 6 logical inputs for PNP signals [10 ... 30 VDC].
Input Frequency: Up to 500 kHz.
Transistor Outputs: 4 fast transistor outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
Relay Outputs: 4 forced-guided redundant output relays with potential-free change-over contact.
Serial Interface: RS232 and RS485.
Power Supply: 24 VAC and 17 ... 40 VDC.
Housing: Compact norm panel housing.
Display: 6 digits LED display with 15 mm height.
Display Range: -199999 to 999999.
Setup: Via keys or PC using the serial RS232 interface.
Dimensions: 110 x 48 x 140 mm (4.33 x 1.89 x 5.51 inches).
