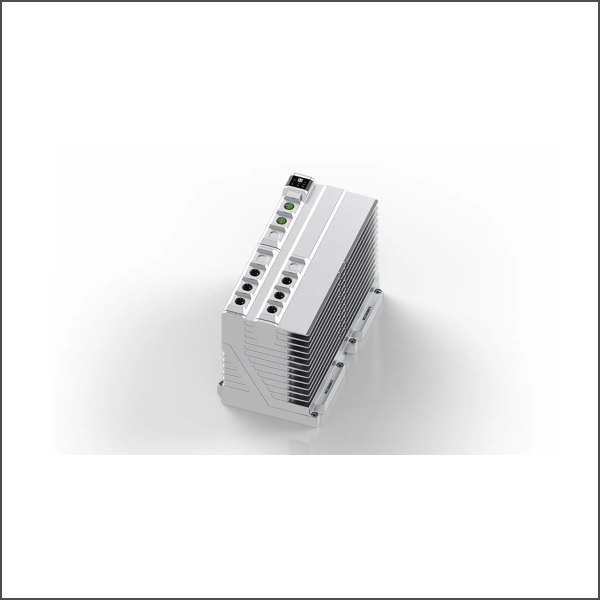

System module MS6640-2202-2342
SKU: MS6640-2202-2342
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS6640-2202-2342 is a 48 V DC power supply with an output current of 40 A. Up to 6 compact AMI8100 integrated servo drives can be connected via M12 connectors on the front of the module. The M12 connectors supply the integrated AMI8100 servo drives with the required power. Two EtherCAT ports are available as a communication interface.
Buy currently uses Select Automation shop pricing and checkout.
Product category: system modules
Category/version: power supply
Output voltage data connector: 48 V DC
Output voltage forwarding: 48 V DC
Output current forwarding: 40 A
Connection method: M12
Supply voltage from backplane: 400…480 V AC
Power supply unit: 48 V
Performance: PFC + backfeed
Baseplate interface: data and power connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 70 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 3
Material: zinc die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
