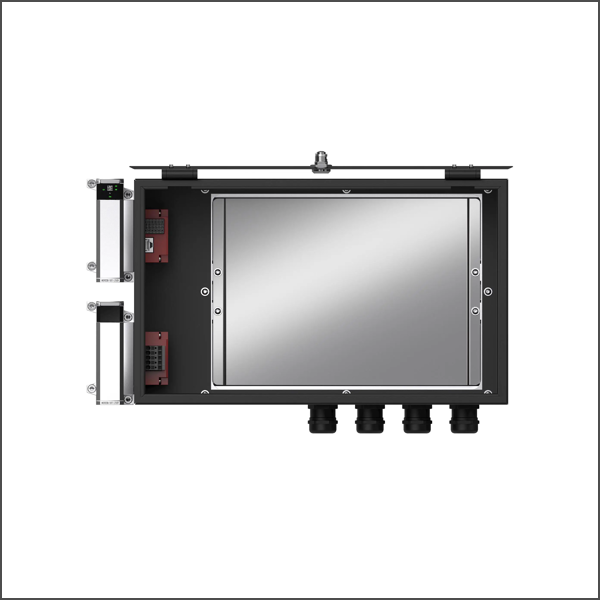

System module baseplate extension MS9230-1011-2109
SKU: MS9230-1011-2109
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MS9230-1011-2109 system module offers the possibility to extend a 2-row baseplate by 300 mm and to integrate electronic modules into the MX-System without having to use an external unit.
Buy currently uses Select Automation shop pricing and checkout.
Product category: system modules
Category/version: empty housing
Output voltage forwarding: 400 V AC/24 + 48 + 600 V DC
Output current forwarding: 25 A/4 + 10 + 25 A
Connection method: terminal box
Fuse: 24 + 48 V DC, fused on terminal strip
Baseplate interface: data and power connector
Diagnostics: yes
Hot swap: no
TwinCAT version: TwinCAT 3
Approvals/markings: CE, (UL in preparation)
Dimensions (W x H x D): 300 mm x 240 mm x 152 mm
Number of rows: 2
Number of slots: 1
Material: zinc die-cast
Cooling: convection
Operating/storage temperature: 0…+50 °C/-25…+85 °C
Protect. rating/installation pos.: IP65/67/variable
