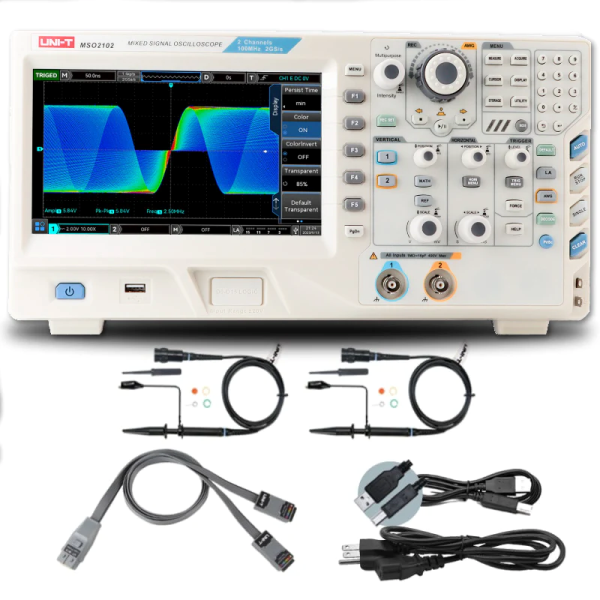

Digital Oscilloscopes, MSO2102 100MHz 2+16Ch MSO
SKU: MSO2102
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
MSO/UPO2000 Series:
Digital oscilloscopes.
Channel bandwidth in analog: 200 MHz, 100 MHz
The real-time sample rate of the analog channel is 2 GSa/s.
Each channel's memory depth is 56 Mpts.
Capture rate of waveforms up to 1,000,000 wfms/s.
Built-in 50 MHz dual-channel feature with an arbitrary waveform generator (only MSO-S).
Allows for real-time loading of oscilloscope screen data to AWG arbitrary wave output.
Support the Bode Plot loop test and analysis feature.
Hardware real-time waveform recording and analysis for up to 120,000 frames.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MSO/UPO2000 Series Digital Oscilloscopes.
Scope Type MSO.
Bandwidth 100MHz.
Channels 2Ch.
Scope Sample Rate 2.0GSa/s.
Memory Depth 56Mpts.
Refresh Rate 1,000,000wfms/s.
Vertical Scale @1MΩ 500μV/div to 20V/div.
Automatic Measurements 36.
Included Bus Protocols None.
Optional Bus Protocols RS232 UART I2C SPI CAN CAN-FD LIN FlexRay.
Logic Pod Included.
Signal Generator Function Not Available.
Frequency Meter 7-bit.
Display Size (in) 8in.
Touchscreen Yes.
Warranty 3 years.
Product Dimensions (L x W x H) 15 in x 5 in x 7 in.
Product Weight 10 lb • Certifications CE/cETLus/UKCA.
