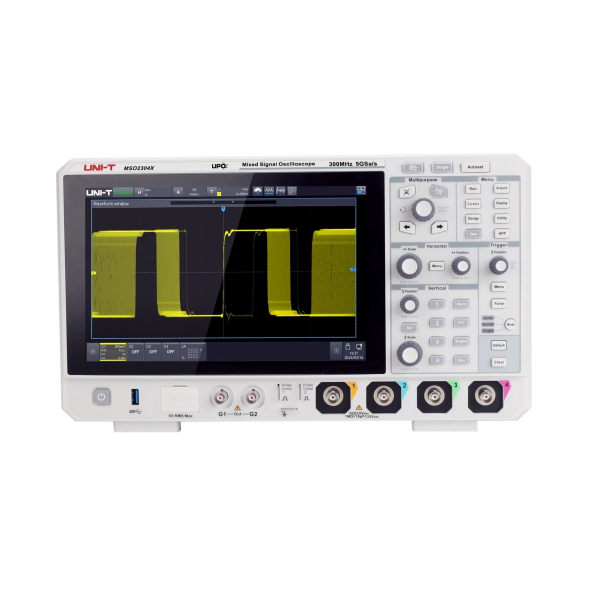

Digital Oscilloscopes, MSO2104X 100MHz 4Ch Mixed Signal Oscilloscope
SKU: MSO2104X
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
MSO2000X Series, Digital Oscilloscopes:
4CH+16MSO.
BW: 100, 200, and 300 MHz
Memory depth is 100 Mpts/CH.
Waveform capture rate: 500,000 wfms/s (in sequence mode: 2,000,000 wfms/s).
9-in-1: Digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency counter, protocol analyser, bode plot analyser, and power analyser.
Histograms and trend charts are added by parameter measurement statistics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MSO2000X Series, Digital Oscilloscopes.
Scope Type MSO.
Bandwidth 100MHz
Channels 4Ch.
Scope Sample Rate 5.0GSa/s.
Memory Depth 100Mpts.
Refresh Rate 2,000,000wfms/s.
Vertical Scale @1MΩ 500μV/div to 10V/div.
Automatic Measurements 54.
Included Bus Protocols RS232 UART I2C SPI RS422 RS485.
Optional Bus Protocols CAN-FD Flex Ray SENT Audio.
Logic Pod Included Optional.
Signal Generator Function Optional.
Frequency Meter 7-bit.
Display Size (in) 10.1in.
Touchscreen Yes.
Warranty 3 years.
Certifications CE/cETLus/UKCA.
