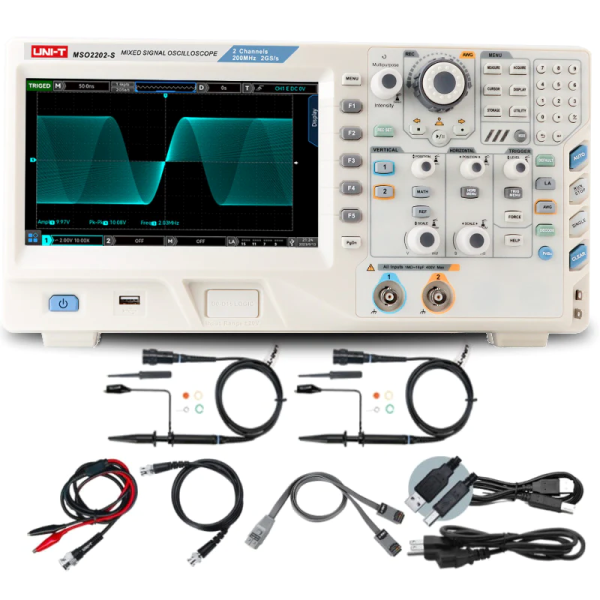

Digital Oscilloscopes, MSO2202-S 200MHz 2+16Ch MSO with Signal Generator
SKU: MSO2202-S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
MSO/UPO2000 Series:
Digital Oscilloscopes.
Analog channel bandwidth: 200MHz, 100MHz
Real time Sample rate of analog channel 2GSa/s.
Memory depth of each channel: 56Mpts.
Waveform capture rate up to 1,000,000 wfms/s.
Built in 50MHz dual channel function / arbitrary waveform generator (only MSO-S).
Support real-time loading of oscilloscope screen data to AWG arbitrary wave output.
Support Bode Plot loop test and analysis function.
Hardware real-time waveform uninterrupted recording and analysis up to 120,000 frames.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MSO/UPO2000 Series Digital Oscilloscopes.
Scope Type MSO.
Bandwidth 200MHz
Channels 2Ch.
Scope Sample Rate 2.0GSa/s.
Memory Depth 56Mpts.
Refresh Rate 1,000,000wfms/s.
Vertical Scale @1MΩ 500μV/div to 20V/div.
Automatic Measurements 36.
Included Bus Protocols None.
Optional Bus Protocols RS232 UART I2C SPI CAN CAN-FD LIN FlexRay.
Logic Pod Included.
Signal Generator Function Included.
Frequency Meter 7-bit.
Display Size (in) 8in.
Touchscreen Yes.
Warranty 3 years.
Product Dimensions (L x W x H) 15 in x 5 in x 7 in.
Product Weight 10 lb.
Certifications CE/cETLus/UKCA.
