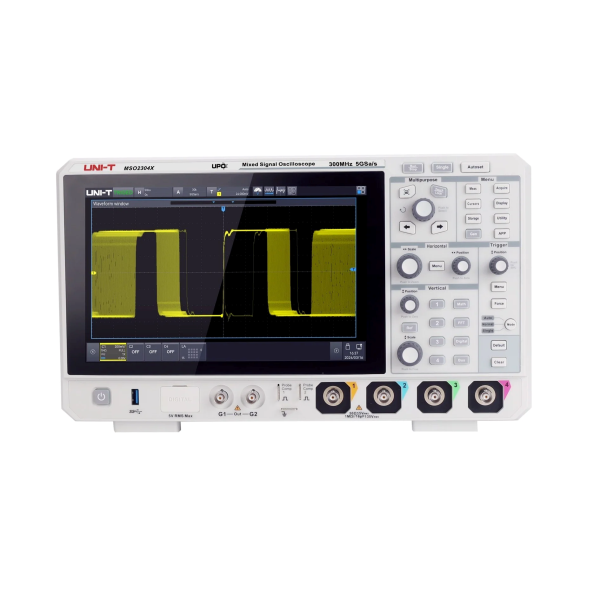

Digital Oscilloscopes, MSO2304X 300MHz 4Ch Mixed Signal Oscilloscope
SKU: MSO2304X
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
MSO2000X Series, Digital Oscilloscopes:
4CH+16MSO.
BW: 100, 200, and 300 MHz
100 Mpts/CH is the memory depth.
500,000 wfms/s waveform capture rate (sequencing mode: 2,000,000 wfms/s).
Nine-in-one: digital oscilloscope, logic analyser, digital voltmeter, spectrum analyser, frequency counter, protocol analyser, Bode plot analyser, power analyser, and function/arbitrary waveform generator.
Histograms and trend charts are added by parameter measurement statistics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MSO2000X Series, Digital Oscilloscopes.
Scope Type MSO.
Bandwidth 300MHz
Channels 4Ch.
Scope Sample Rate 5.0GSa/s.
Memory Depth 100Mpts.
Refresh Rate 2,000,000wfms/s.
Vertical Scale @1MΩ 500μV/div to 10V/div.
Automatic Measurements 54.
Included Bus Protocols RS232 UART I2C SPI RS422 RS485.
Optional Bus Protocols CAN-FD Flex Ray SENT Audio.
Logic Pod Included Optional.
Signal Generator Function Optional.
Frequency Meter 7-bit.
Display Size (in) 10.1in.
Touchscreen Yes.
Warranty 3 years.
Certifications CE/cETLus/UKCA.
