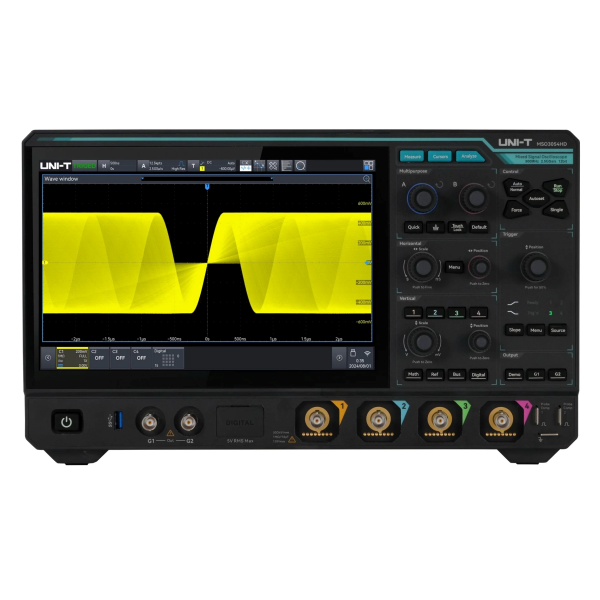

Digital Oscilloscopes, MSO3054HD 12-Bit 500MHz 4Ch Mixed Signal Oscilloscope

Pricing available on request MSO3000HD Series, Digital Oscilloscopes: Analog channel bandwidth: 500 MHz, 350 MHz, and 200 MHz Real-time sampling rate: 2.5 GSa/s. The vertical resolution is 12-bit. Four analog channels and sixteen digital channels. Memory depth is up to 500 Mpts. The waveform capture rate is up to 500,000 wfms/s (in sequence mode, 1,500,000 wfms/s). 9 instrument features include a digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency meter, protocol analyser, bode plot analyser, and power analyser. Uninterrupted hardware real-time waveform recording and analysis of up to 125,000 frames. Enhanced FFT with up to 4 million points. ERES (improved resolution) is supported at up to 4 bits. 54 different parameter measurements. Adds a histogram and a line graph display. Multi-window display. Multi-channel 7-digit hardware frequency meter. DVM multi-channel RMS measurement includes DC, AC RMS, and DC+AC RMS. Protocol triggering and decoding functions include RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, Flex Ray, Audio, MIL-STD-1553B, Manchester, SENT, and ARINC429. Zone trigger to capture irregular impulses and observe complex signals. 10.1-inch 1280x800 HD capacitive multitouch display. Built-in web server.
