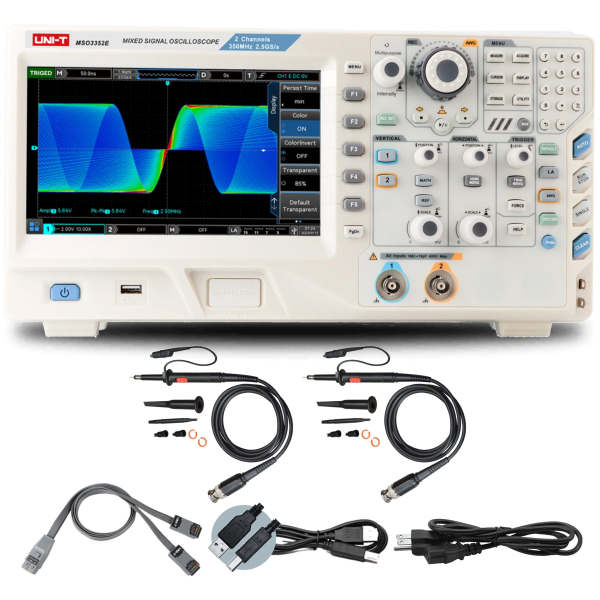

Digital Oscilloscopes, MSO3352E 350MHz 2+16Ch MSO

MSO/UPO3000E Series, Digital Oscilloscopes: Analog channel bandwidth: 350 MHz, 500 MHz Instantaneous analog channel sample rate: 2.5 GSa/s; digital channel sample rate in real time: 1.25 GSa/s (only MSO). 50Ω, 1MΩ are the input impedances. Maximum depth of memory: 250 mpts. Capture rate of waveforms up to 1,000,000 wfms/s. Built-in arbitrary waveform generator and dual channel operation @ 50 MHz (only MSO-S). It allows oscilloscope screen data to be loaded in real time to the AWG arbitrary wave output. Support the analysis and test functions of the Bode Plot loop. Hardware for continuous, real-time waveform analysis and recording up to 120,000 frames. Waveform operation functions include (+, -, ×, ÷, digital filtering, logic, and advanced operations). 1M-point improved FFT, with frequency, waterfall diagram, detection, and mark measurement capabilities, among other features. 36 waveform properties are automatically measured. Multiple Scopes Fluorescent displays and multi-channel independent triggers are supported by 2.0. 7-bit hardware frequency counter with many independent channels.
