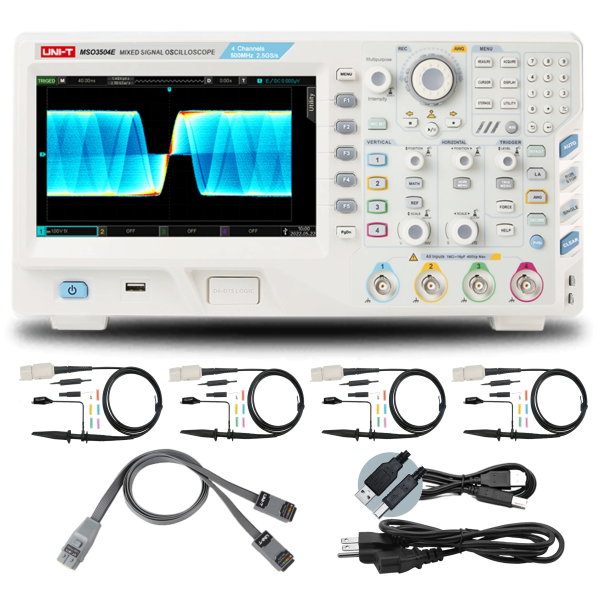

Digital Oscilloscopes, MSO3504E 500MHz 4+16Ch MSO

MSO/UPO3000E Series, Digital Oscilloscopes: Analog channel bandwidth: 350 MHz, 500 MHz Real-time analog channel sample rate is 2.5 GSa/s, while digital channel real-time sample rate is 1.25 GSa/s (only MSO). Input impedance: 1 MΩ, 50 Ω. Maximum memory depth: 250MB. Waveform capture rate is up to 1,000,000 wfms/s. Built-in 50 MHz dual-channel feature with an arbitrary waveform generator (only MSO-S). It allows for real-time loading of oscilloscope screen data to the AWG arbitrary wave output. Support the Bode Plot loop test and analysis feature. Hardware real-time waveform recording and analysis for up to 120,000 frames. Waveform operation functions include (+, -, ×, ÷, digital filtering, logic, and advanced operations). 1M-point improved FFT, with frequency, waterfall diagram, detection, and mark measurement capabilities, among other features. Automatic measurement of 36 waveform characteristics. Multi-Scopes 2.0 allows for multi-channel independent triggers and luminous displays. A multi-channel independent 7-bit hardware frequency counter.
