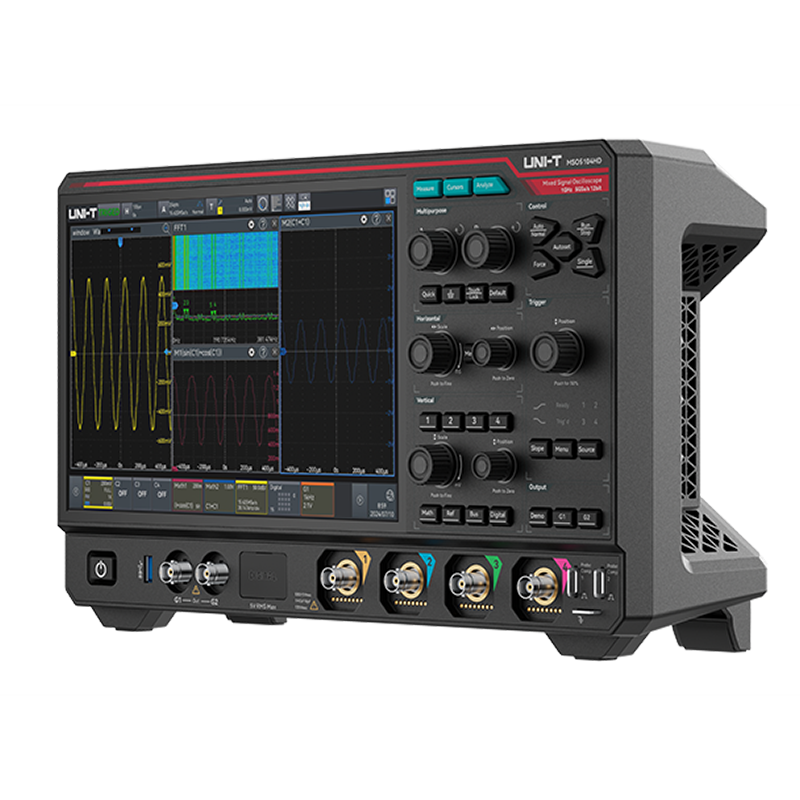

Digital Oscilloscopes, MSO5034HD (350 MHz,5 GSa/s, 12bit, 4 analog channels

Pricing available on request MSO5000HD Series, Digital Oscilloscopes: Analog channel bandwidth: 1 GHz, 500 MHz, 350 MHz The real-time sampling rate is 5 GSa/s. 12-bit vertical resolution. 16 digital channels and 4 analog channels. Memory depth is up to 500 Mpts. The maximum waveform capture rate is 800,000 wfms/s (or 2,000,000 wfms/s in sequence mode). There are nine instrument functions: digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency meter, protocol analyser, bode plot analyser, and power analyser. Hardware real-time waveform recording and analysis of up to 400,000 frames without interruption. Improved FFT by up to 4 million points. There are 54 different types of parameter measurements, adding a line graph display and histogram. Display with many windows. Hardware frequency meter with several channels and seven digits. DVM multi-channel RMS measurement includes DC, AC RMS, and DC+AC RMS. Functions of protocol triggering and decoding: Flex Ray, audio, MIL-STD-1553B, Manchester, SENT, ARINC429, RS232/UART, I2C, SPI, I3C, 1-wire, CAN, and CAN-FD. Zone trigger for detecting complex signals and recording intermittent signals. 10.1-inch capacitive multi-touch screen with 1280x800 HD. Integrated web server.
