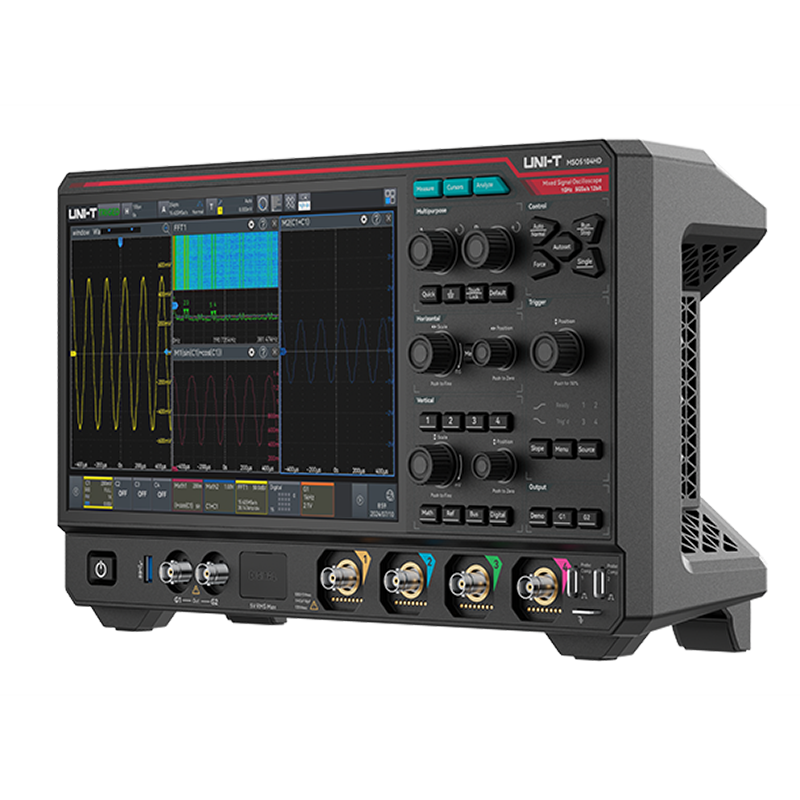

Digital Oscilloscopes, MSO5054HD (500 MHz,5 GSa/s, 12bit, 4 analog channels)

Pricing available on request MSO5000HD Series, Digital Oscilloscopes: Analog channel bandwidth: 1 GHz, 500 MHz, 350 MHz The real-time sampling rate is 5 GSa/s. 12-bit vertical resolution. 4 analog channels and 16 digital channels. Memory depth is up to 500 Mpts. The maximum waveform capture rate is 800,000 wfms/s (or 2,000,000 wfms/s in sequence mode). 9 instrument features include a digital oscilloscope, logic analyser, function/arbitrary waveform generator, spectrum analyser, digital voltmeter, frequency meter, protocol analyser, bode plot analyser, and power analyser. Hardware real-time waveform recording and analysis of up to 400,000 frames without interruption. improved FFT by up to 4 million points. 54 parameter measurements, including histogram and line graph displays. display with many windows. 7-digit hardware frequency meter with several channels. DVM multi-channel RMS measurement includes DC, AC RMS, and DC+AC RMS. RS232/UART, I2C, SPI, I3C, 1-wire, CAN, CAN-FD, LIN, Flex Ray, audio, MIL-STD-1553B, Manchester, SENT, and ARINC429 are among the protocols that can be triggered and decoded. Zone trigger for detecting complex signals and recording intermittent signals. 10.1-inch 1280x800 HD capacitive multitouch display. The webserver is built in.
