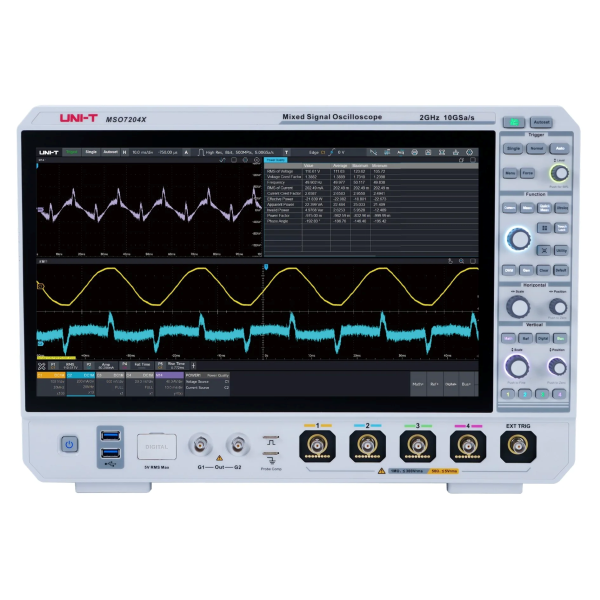

Digital Oscilloscopes, MSO7204X 2GHz 4Ch Mixed Signal Oscilloscope
SKU: MSO7204X
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
MSO7000X Series, Digital Oscilloscopes:
Analog channel bandwidth is 1G/2GHz.
The maximum sample rate is 10 GSa/s.
Maximum memory depth is 1 Gpt (standard setup).
Waveform capture rates: 800,000 wfms/s (UltraAcq®) and 2,000,000 wfms/s (sequence mode).
11 different types of serial protocol analysis.
A single machine with several functions: digital oscilloscope, logic analyser, spectrum analyser, function/arbitrary waveform generator, digital voltmeter, frequency counter, and protocol analyser.
Up to 48 parameter measurements are supported, including histograms, tracking, and trend graphs.
Advanced measurement and analysis functions include power analysis (optional), jitter analysis and eye diagrams (optional), mask and limit testing, histograms, and more.
The operating system is Windows 10, 64-bit.
5.6-inch high-definition touchscreen.
Embedded Webserver allows for convenient cross-platform access.
Support the SCPI standard instrument programming commands.
Enables MATLAB embedded programming and data presentation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
MSO7000X Series, Digital Oscilloscopes.
Scope Type MSO.
Bandwidth 2GHz.
Channels 4Ch.
Scope Sample Rate 10GSa/s.
Memory Depth 1Gpts.
Refresh Rate 2,000,000wfms/s.
Vertical Scale @1MΩ 1mV/div to 10V/div.
Automatic Measurements 48.
Included Bus Protocols RS232 UART I2C SPI CAN LIN RS422 RS485.
Optional Bus Protocols CAN-FD Flex Ray SENT Audio MIL-STD-1553B ARNIC429 Manchester.
Logic Pod Included Optional.
Signal Generator Function Optional.
Frequency Meter 8-bit.
Display Size (in) 15.6in.
Touchscreen Yes.
Warranty 3 years.
Certifications CE/cETLus/UKCA.
