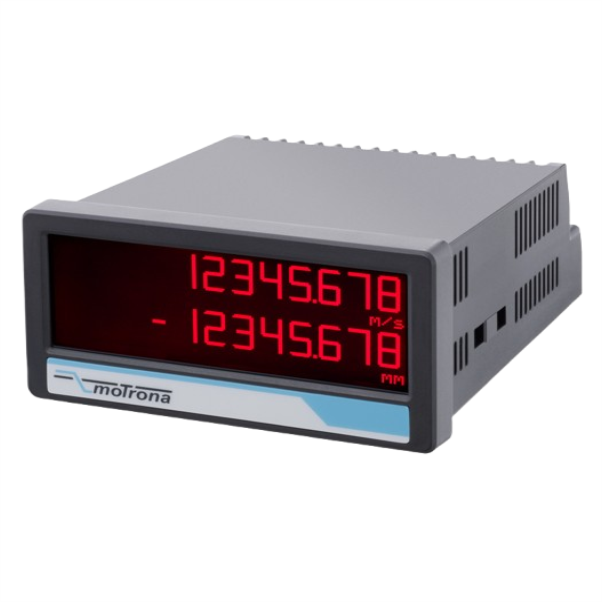

touchMATRIX® Combination Indicator MX350
SKU: MX350
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The MX350 is a state-of-the-art frequency display and counter combo.
It is possible to display two sizes simultaneously from multiple measurement methods.
Consequently, the device can be used to concurrently acquire and display two parameters, such as speed and length (quantity).
Additionally, the gadget can tolerate an input frequency of up to 250 kHz.
Linearization, scaling, filtering, start-up suppression, and linking both channels (A+B, A-B, etc.) are some of the MX350's other useful functions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse input with format A, B, 90° [HTL], single channel as an option.
HTL input for encoder and sensors with NPN / PNP or NAMUR switching characteristics.
Input frequency up to 250 kHz.
3 control inputs for HTL / PNP signals.
Power supply 18 ... 30 V DC.
24 V auxiliary output for encoder supply.
3.78 x 1.89-inch norm panel housing and IP65 protection.
Bright and high-contrast display with event-dependent colour variations.
Emulation of a 7-segment display inclusively icons and units.
Intuitive and easy parameterization by plain text and touchscreen.
Multi-function device for use as speedometer / tachometer, pulse counter / position indicator, number counter and total counter.
Operating modes such as scaling, average filter, startup suppression.
Linearization with 24 control points.
Options:
Option AC: Power supply 115 ... 230 V AC.
Option AO: 16-bit analog output, 4 control outputs, serial RS232 interface.
Option AR: 16-bit analog output, 4 control outputs, serial RS485 interface.
Option CO: 4 control outputs, serial RS232 interface.
Option CR: 4 control outputs, serial RS485 interface.
Option RL: 2 relay outputs.
