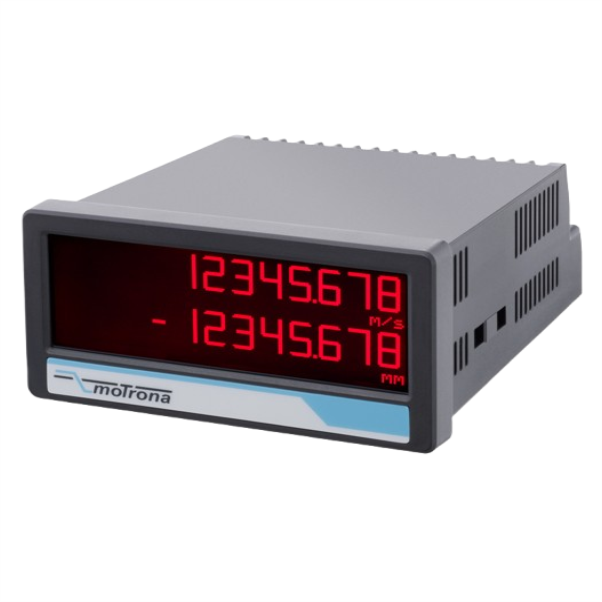

touchMATRIX® Combi Indicator MX355
SKU: MX355
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The MX350 and MX355 touchMATRIX® devices are a creative fusion of frequency display and counter.
They provide the option to simultaneously display two sizes obtained using various measurement techniques.
As a result, it is possible to measure and display two sizes at once, such as speed and length (quantity).
Although the devices are nearly the same, the MX355 has a higher input frequency of up to 1 MHz and an inverted incremental HTL / RS422 input.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Incremental input with format A, /A, B, /B.
Differential, single-ended HTL / RS422.
Input frequency up to 1 MHz.
3 control inputs for HTL / PNP signals.
Power supply 18 ... 30 V DC.
24 V auxiliary output for encoder supply.
3.78 x 1.89-inch norm panel housing and IP65 protection.
Bright and high-contrast display with event-dependent colour variations.
Emulation of a 7-segment display inclusively icons and units.
Intuitive and easy parameterization by plain text and touchscreen.
Multi-function device for use as speedometer / tachometer, pulse counter / position indicator, number counter and total counter.
Operating modes such as scaling, average filter, startup suppression.
Linearization with 24 control points.
Options:
Option AC: Power supply 115 ... 230 V AC.
Option AO: 16-bit analog output, 4 control outputs, serial RS232 interface.
Option AR: 16-bit analog output, 4 control outputs, serial RS485 interface.
Option CO: 4 control outputs, serial RS232 interface.
Option CR: 4 control outputs, serial RS485 interface.
Option RL: 2 relay outputs.
