      Absolute Optical Rotary Encoder CANopen (DS 401) 10mm

      SKU: OCD-CAA1B-0013-C10S-H3P

      Out of stock

      Availability: Out of Stock

      Short Description

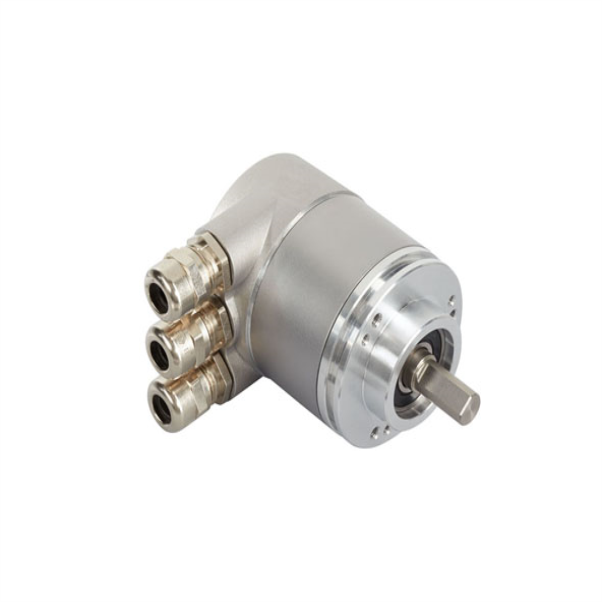

      Pricing available on request Description: For accurate and dependable position measurement in industrial applications, the POSITAL FRABA Absolute Optical Rotary Encoder with CANopen interface (model OCD-CAA1B-0013-C10S-H3P) was created. This encoder is perfect for a variety of automation and control systems because it uses optical technology to offer precise single-turn position feedback.
      OCD-CAA1B-0013-C10S-H3P
      Alternative image 1
      Specifications: Interface: CANopen (DS-401). Resolution: Single turn, 13-bit (8192 steps per revolution). Output Driver: Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers. Supply Voltage: 10 – 30 VDC. Current Consumption: ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC. Power Consumption: ≤ 2.5 W. Start-Up Time: < 250 ms. Reverse Polarity Protection: Yes. Short Circuit Protection: Yes. EMC Compliance: Emitted Interference: DIN EN 61000-6-4. Noise Immunity: DIN EN 61000-6-2. MTTF: 13.5 years @ 40°C. Accuracy (INL): ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit). Code: Binary. Protection Class (Shaft): IP66/IP67. Protection Class (Housing): IP66/IP67. Operating Temperature: -40°C to +85°C. Storage Temperature: -40°C to +85°C. Humidity: 98% RH, no condensation. Housing Material: Steel. Housing Coating: Cathodic corrosion protection (>720 hrs salt spray resistance).Flange Type: Clamp, ø 58 mm. Flange Material: Aluminium. Shaft Type: Solid, Single Flat, Length = 20 mm. Shaft Diameter: ø 10 mm. Shaft Material: Stainless Steel V2A (1.4305, 303). Max. Shaft Load: Axial 40 N, Radial 110 N. Minimum Mechanical Lifetime: 430 (20 N / 40 N). 150 (40 N / 60 N). 100 (40 N / 80 N). 55 (40 N / 110 N) (10^8 revolutions with Fa/Fr). Rotor Inertia: ≤ 30 gcm². Friction Torque: ≤ 5 Ncm @ 20°C. Max. Permissible Mechanical Speed: ≤ 3000 1/min. Shock Resistance: ≤ 100 g (half sine 6 ms, EN 60068-2-27). Permanent Shock Resistance: ≤ 10 g (half sine 16 ms, EN 60068-2-29). Vibration Resistance: ≤ 20 g (20 Hz – 2000 Hz, EN 60068-2-6). Length: 69.5 mm. Weight: 470 g. Electrical Connection: 3 x Cable Gland. Certification: CE + cULus.
