Multi Turn Absolute Optical Rotary Encoder CANopen (DS 401) 10mm
SKU: OCD-CAA1B-1213-C10S-H3P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

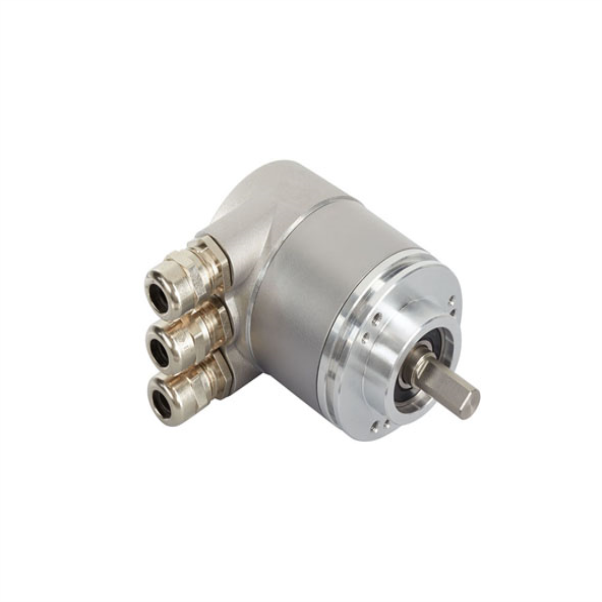

For precise position feedback in a variety of industrial applications, the Posital Fraba Multi Turn Absolute Optical Rotary Encoder CANopen (DS 401) 10 mm, model OCD-CAA1B-1213-C10S-H3P, is a high-precision instrument.
This encoder provides accurate and dependable multi-turn position readings by utilizing cutting-edge optical technology.
Its sturdy construction, which includes an aluminum housing and a solid stainless-steel shaft, guarantees longevity and resilience to adverse environmental conditions.
The encoder may be integrated into intricate automation systems because it supports the CANopen interface.
This encoder is perfect for applications needing accurate and reliable position control because of its high resolution and numerous programming functions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: CANopen (DS 401).
Transmission Rate: ≤1 Mbaud.
Supply Voltage: 10 – 30 VDC.
Current Consumption: ≤ 100 mA @ 24 V DC.
Power Consumption: ≤ 2.5 W.
Start-Up Time: < 1 s.
Protection Class: IP65 (cover), IP64 (shaft).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 13-bit single turn, 12-bit multiturn.
Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Shaft Diameter: 10 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 20 g (20 Hz – 2000 Hz).
Housing Material: Aluminium with wet coating and cathodic corrosion protection.
Connection Type: 3 x Cable Gland, radial orientation.
Weight: 480 g.
