Single Turn Absolute Optical Rotary Encoder EtherCat 10mm, 13 bit Resolution
SKU: OCD-D2C1B-0013-C10S-H3P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

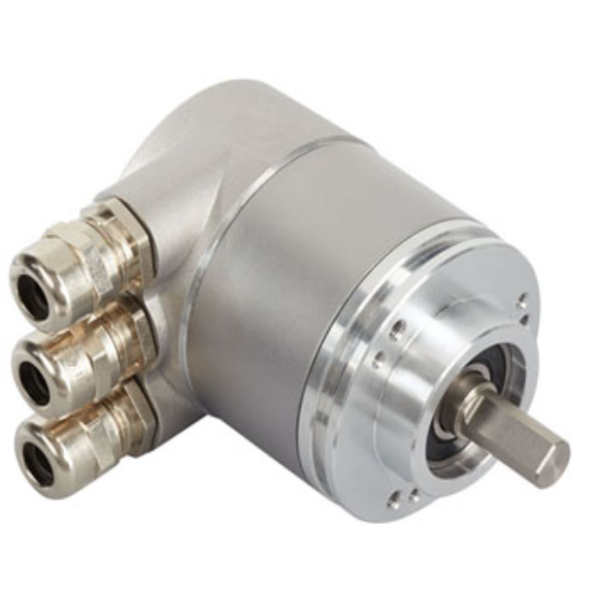

A single-turn absolute optical rotary encoder, the Posital Fraba OCD-D2C1B-0013-C10S-H3P is intended for industrial applications requiring high-precision position measurement.
With its EtherCAT interface, this encoder offers dependable and quick communication for real-time control systems.
It guarantees precise and reliable performance even in challenging conditions because to its sturdy architecture and high-resolution optical sensor technology.
Its 10mm shaft diameter provides versatility and ease of integration, making it appropriate for a range of mechanical configurations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: OCD-D2C1B-0013-C10S-H3P.
Type: Single-turn absolute optical rotary encoder.
Interface: EtherCAT.
Shaft Diameter: 10 mm.
Resolution: 13 bits (8192 steps per revolution).
Supply Voltage: 10-30 V DC.
Output Code: Binary.
Accuracy: ±0.022°.
Housing Material: Aluminium.
Protection Class: IP65.
Operating Temperature: -40°C to +85°C.
Connection: M12 connector.
Max. Rotational Speed: 6000 rpm.
Shock Resistance: 100 g, 6 ms.
Vibration Resistance: 10 g, 10-2000 Hz.
