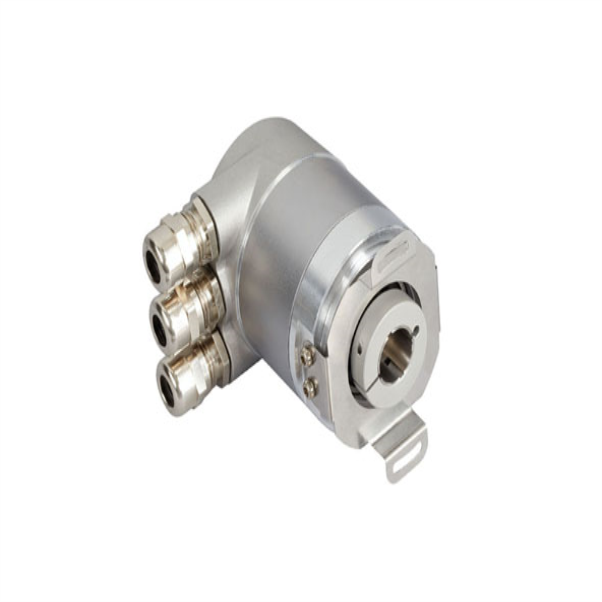

Single TurnAbsolute Optical Rotary Encoder Prosafe (Pronet IO) 15 mm
SKU: OCD-DPC1B-0012-B15S-H3P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For accurate and dependable position measurement in industrial applications, the POSITAL FRABA Single Turn Absolute Optical Rotary Encoder with Prosafe (Pronet IO) interface (model OCD-DPC1B-0012-B15S-H3P) was created.
This encoder is perfect for a variety of automation and control systems because it uses optical technology to offer precise single-turn position feedback.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Prosafe (Pronet IO).
Resolution: Single turn, 12-bit (4096 steps per revolution).
Output Driver: Transceiver (ISO 11898), Galvanically Isolated by Opto-Couplers.
Supply Voltage: 10 – 30 VDC.
Current Consumption: ≤ 230 mA @ 10 V DC, ≤ 100 mA @ 24 V DC.
Power Consumption: ≤ 2.5 W.
Start-Up Time: < 250 ms.
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC Compliance:
Emitted Interference: DIN EN 61000-6-4.
Noise Immunity: DIN EN 61000-6-2.
MTTF: 13.5 years @ 40°C.
Accuracy (INL): ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Code: Binary.
Protection Class (Shaft): IP66/IP67.
Protection Class (Housing): IP66/IP67.
Operating Temperature: -40°C to +85°C.
Storage Temperature: -40°C to +85°C.
Humidity: 98% RH, no condensation.
Housing Material: Steel.
Housing Coating: Cathodic corrosion protection (>720 hrs salt spray resistance).
Flange Type: Blind Hollow, ø 58 mm.
Flange Material: Aluminium.
Shaft Type: Blind Hollow, Depth = 30 mm.
Shaft Diameter: ø 15 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Rotor Inertia: ≤ 30 gcm².
Friction Torque: ≤ 5 Ncm @ 20°C.
Max. Permissible Mechanical Speed: ≤ 3000 1/min.
Shock Resistance: ≤ 100 g (half sine 6 ms, EN 60068-2-27).
Permanent Shock Resistance: ≤ 10 g (half sine 16 ms, EN 60068-2-29).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6).
Length: 88 mm.
Weight: 460 g.
Electrical Connection: 3 x Cable Gland.
Certification: CE + cULus.
