      Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 15mm

      SKU: OCD-DPC1B-1212-B15S-H3P

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: For precise position feedback in a variety of industrial applications, the Posital Fraba Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 15 mm, model OCD-DPC1B-1212-B15S-H3P, is a high-precision instrument. This encoder provides accurate and dependable multi-turn position readings by utilizing cutting-edge optical technology. Its sturdy construction, which includes an aluminium housing and a solid stainless-steel shaft, guarantees longevity and resilience to adverse environmental conditions. The encoder may be integrated into intricate automation systems since it supports the Profibus DP interface. This encoder is perfect for applications needing accurate and reliable position control because of its high resolution and numerous programming functions.

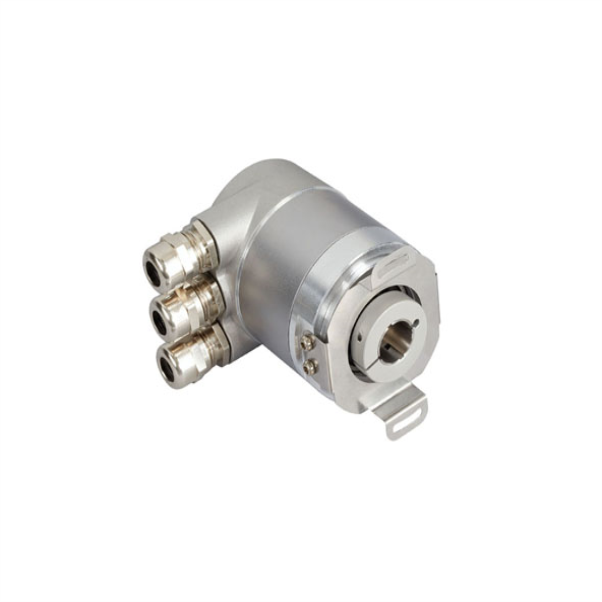

      OCD-DPC1B-1212-B15S-H3P
      Alternative image 1
      Specifications: Interface: Profibus DP (DPV0, DPV1, DPV2). Transmission Rate: ≤12 Mbaud. Supply Voltage: 10 – 30 VDC. Current Consumption: ≤ 115 mA @ 10 V DC, ≤ 50 mA @ 30 V DC. Power Consumption: ≤ 1.5 W. Start-Up Time: < 1 s. Protection Class: IP66/IP67 (shaft and housing). Operating Temperature: -40 °C to +85 °C. Storage Temperature: -40 °C to +85 °C. Humidity: 98% RH, no condensation. Resolution: 12-bit single turn, 12-bit multiturn. Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit). Shaft Diameter: 15 mm. Shaft Material: Stainless Steel V2A (1.4305, 303). Max. Shaft Load: Axial 40 N, Radial 110 N. Mechanical Lifetime: Up to 430 x 10^8 revolutions. Shock Resistance: ≤ 100 g (half sine 6 ms). Vibration Resistance: ≤ 20 g (20 Hz – 2000 Hz). Housing Material: Aluminium with wet coating and cathodic corrosion protection. Connection Type: 3 x Cable Gland, radial orientation. Weight: 480 g.
